10HP BALDOR 1770RPM 256TC TENV 3PH MOTOR IDNM2238T

Catalog Number: IDNM2238T
Description: 10HP,1770RPM,256TC,TENV,3PH,60HZ,INVERTER DUTY
Ship Weight:  285 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meet NEMA MG1, Part 31
BEARING-DRIVE-END: 6309
BEARING-OPP-DRIVE-END: 6208
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 91.7
FRAME: 256TC
CATALOG NUMBER: IDNM2238T
SPEC. NUMBER: 09F278Y402G1
FL AMPS: 26/13
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 11.2/5.6
MAXIMUM-RPM: 5000
SPEED [rpm]: 1770
OUTPUT [hp]: 10 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 2.1
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 0.9
VOLTAGE: 230/460
HERTZ: 60

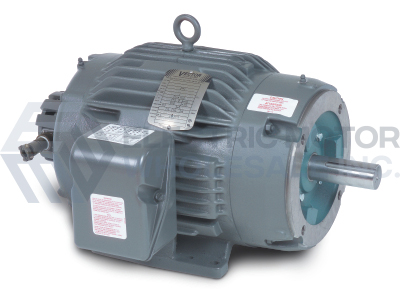

10HP BALDOR 1770RPM 256TC TENV 3PH MOTOR IDNM2238T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDNM2238T
Stock # IDNM2238T
Price: $2,107.00
Compare At: $3,627.00
