7.5HP BALDOR 1765RPM 254TC TENV 3PH MOTOR IDNM2237T

Catalog Number:  IDNM2237T
Description:  7.5HP,1765RPM,254TC,TENV,3PH,6-60HZ,INVERTER DUTY
Ship Weight:  258 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
BEARING-DRIVE-END: 6309
BEARING-OPP-DRIVE-END: 6208
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 90.2
FRAME: 254TC
CATALOG NUMBER: IDNM2237T
SPEC. NUMBER: 09F278Y362G1
FL AMPS: 18.2/9.1
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 7.2/3.6
MAXIMUM-RPM: 5000
SPEED [rpm]: 1765
OUTPUT [hp]: 7.5 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 1.4
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 1
VOLTAGE: 230/460
HERTZ: 60

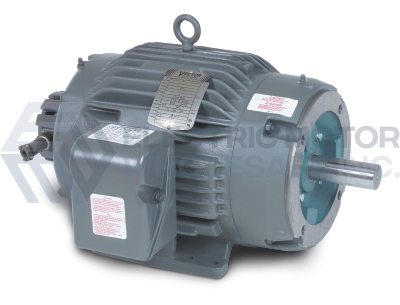

7.5HP BALDOR 1765RPM 254TC TENV 3PH MOTOR IDNM2237T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDNM2237T
Stock # IDNM2237T
Price: $1,838.00
Compare At: $3,163.00
