30HP BALDOR 1780RPM 286T TEBC 3PH MOTOR IDM4104T

Catalog Number:  IDM4104T
Description:  30HP,1780RPM,286T,TEBC,3PH,60HZ,INVERTER DUTY
Ship Weight:  464 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meet NEMA MG1, Part 31
BEARING-DRIVE-END: 6311
BEARING-OPP-DRIVE-END: 6309
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 94.1
FRAME: 286T
CATALOG NUMBER: IDM4104T
SPEC. NUMBER: 10F206W586G1
FL AMPS: 72/36
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 29/14.5
MAXIMUM-RPM: 4000
SPEED [rpm]: 1780
OUTPUT [hp]: 30 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 4.46
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 0.85
VOLTAGE: 230/460
HERTZ: 60

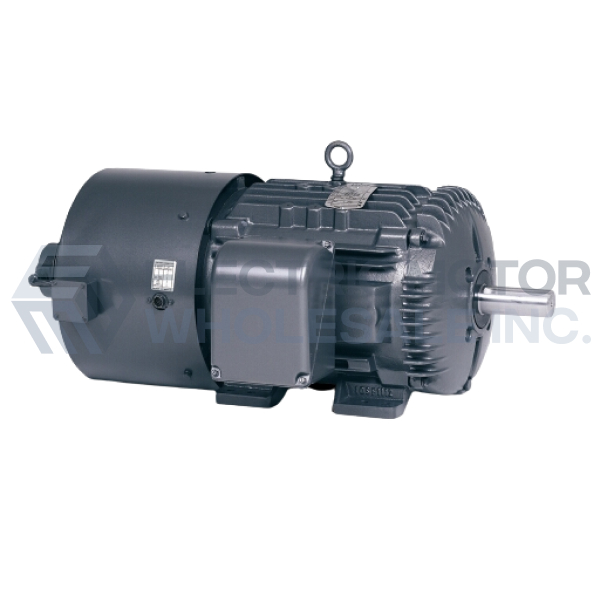

30HP BALDOR 1780RPM 286T TEBC 3PH MOTOR IDM4104T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDM4104T
Stock # IDM4104T
Price: $4,081.79
Compare At: $5,798.00
Quantity:
