3HP BALDOR 1165RPM 215TC TEBC 3PH MOTOR IDM3764T

Catalog Number:  IDM3764T
Description:  3HP,1165RPM,215TC,TEBC,3PH,60HZ,INVERTER DUTY
Ship Weight:  187 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meet NEMA MG1, Part 31
FL AMPS: 9/4.5
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
BLOWER-AMPS: .25
BLOWER-HERTZ: 60
BLOWER-PHASE: 3
BLOWER-VOLTS: 460
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 90.2
FRAME: 215TC
CATALOG NUMBER: IDM3764T
HERTZ: 60
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 4.6/2.3
MAXIMUM-RPM: 2300
SPEED [rpm]: 1165
OUTPUT [hp]: 3 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 0.92
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 1.7
SPEC. NUMBER: 07J137X822G1
VOLTAGE: 230/460

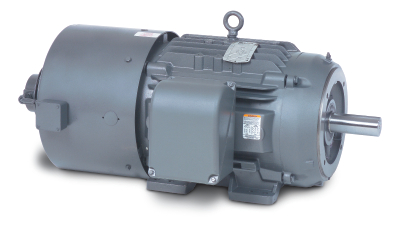

3HP BALDOR 1165RPM 215TC TEBC 3PH MOTOR IDM3764T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDM3764T
Stock # IDM3764T
Price: $1,844.00
Compare At: $3,174.00
