1.5HP BALDOR 1760RPM 145TC TEBC 3PH MOTOR IDM3584T-5

Catalog Number:  IDM3584T-5
Description:  1.5HP,1760RPM,145TC,TEBC,3PH,6-60HZ,INVERTER DUTY
Ship Weight:  70 lbs.

APPLICATIONS: Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meet NEMA MG1, Part 31
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 88.5
FRAME: 145TC
CATALOG NUMBER: IDM3584T-5
SPEC. NUMBER: 05E535W830G1
FL AMPS: 1.7
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 1
MAXIMUM-RPM: 6000
SPEED [rpm]: 1760
OUTPUT [hp]: 1.5 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 0.177
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 1.33
VOLTAGE: 575
HERTZ: 60

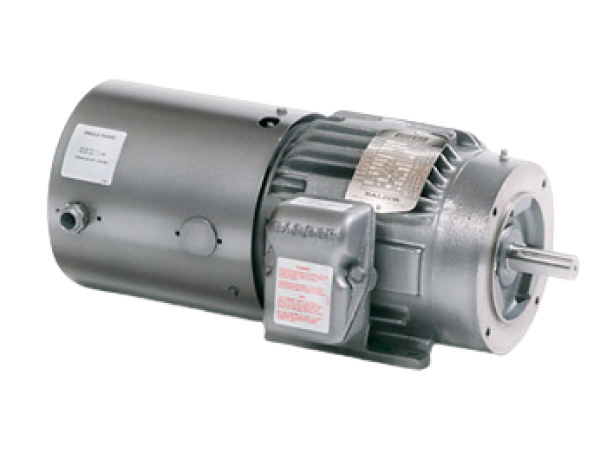

1.5HP BALDOR 1760RPM 145TC TEBC 3PH MOTOR IDM3584T-5
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDM3584T-5
Stock # IDM3584T-5
Price: $1,099.00
Compare At: $1,892.00
