7.5HP BALDOR 1180RPM 254TC TEBC 3PH MOTOR IDM2276T

Catalog Number:  IDM2276T
Description:  7.5HP,1180RPM,254TC,TEBC,3PH,60HZ,INVERTER DUTY
Ship Weight:  332 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS:Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

FEATURES:

  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
BEARING-DRIVE-END: 6309
BEARING-OPP-DRIVE-END: 6208
BLOWER-AMPS: --
BLOWER-HERTZ: --
BLOWER-PHASE: --
BLOWER-VOLTS: --
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 91.7
FRAME: 254TC
CATALOG NUMBER: IDM2276T
SPEC. NUMBER: 09F279X827G1
FL AMPS: 21.4/10.7
INSULATION-CLASS: H
MAGNETIZING-CURRENT: 11/5.5
MAXIMUM-RPM: 5000
SPEED [rpm]: 1180
OUTPUT [hp]: 7.5 TE
PHASE: 3
RATING: 40C AMB-CONT
ROTOR-INERTIA: 4.34
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SLIP-HERTZ: 0.95
VOLTAGE: 230/460
HERTZ: 60
7.5HP BALDOR 1180RPM 254TC TEBC 3PH MOTOR IDM2276T

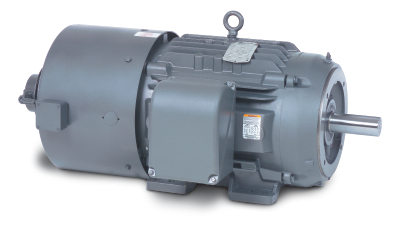

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDM2276T
Stock # IDM2276T
Price: $3,245.00
Compare At: $5,586.00
