50HP BALDOR 1775RPM FL2570Z TEBC 3PH MOTOR IDBRPM25504

Catalog Number:  IDBRPM25504
Description:  50HP,1775RPM,FL2570Z,TEBC,3PH,60HZ,INVERTER DUTY
MAX RPM:  3545
Ship Weight:  530 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

Baldor Three Phase RPM AC Inverter Duty Motors are designed for extruders, conveyors, crane & hoist systems, converting, pumps, web processing, test stands, traction duty, winders, and printing.

FEATURES:

  • Compact square laminated steel frame FL210-L440 (FL180 is extruded
    aluminum) for inverter duty and vector duty 1000:1 constant torque.
  • Premium class H insulation, 40 C ambient, 1.0 S.F. Ball bearing.
  • Three normally closed thermostats (one per phase).
  • Surpasses the requirements of MG1, Part 31. VPI
    insulation & insulated O.D.E. bearing is standard on all L440 frames.
  • Exclusive optimum pole Inverter Duty - not for across the line operation.
SPEC. NUMBER: P25T300
OUTPUT [hp]: 50
VOLTAGE: 460
FL AMPS: --
SPEED [rpm]: 1775/3545
FRAME: FL2570Z
HERTZ: N/A
PHASE: 3
SERVICE FACTOR: 1
CODE: --
DESIGN CODE: --
INSULATION-CLASS: H
FL EFFICIENCY: --
POWER-FACTOR: --
RATING: 40
DUTY: --
ENCLOSURE: TEBC
50HP BALDOR 1775RPM FL2570Z TEBC 3PH MOTOR IDBRPM25504

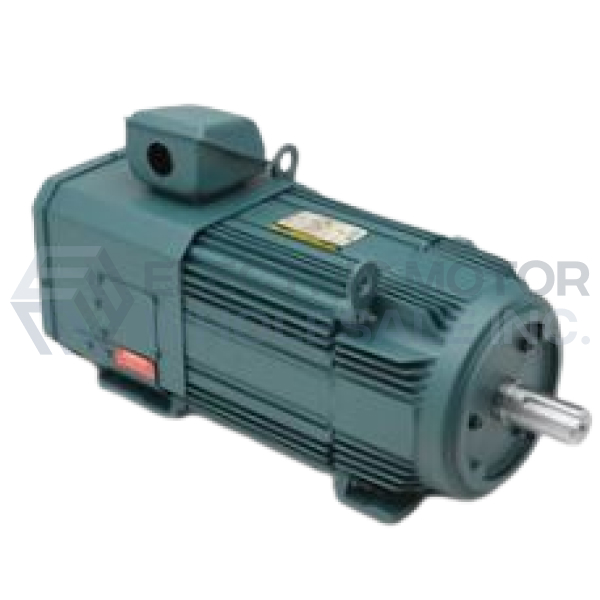

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: IDBRPM25504
Stock # IDBRPM25504
Price: $4,276.00
Compare At: $7,361.00
