1/8HP BALDOR 30RPM TENV 180VDC RIGHT ANGLE GEARMOTOR GP7424

1/8HP BALDOR 30RPM TENV 180VDC RIGHT ANGLE GEARMOTOR GP7424

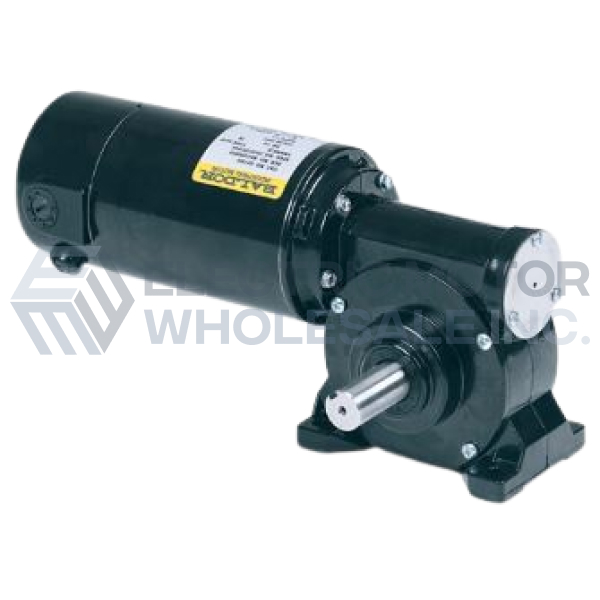

RIGHT ANGLE J STYLE.jpg
Picture is for reference only.

Part Number:

GP7424

Model/Spec Number:

24A019Z029G5

Manufacturer:

Baldor Obsolete Motors
GP7424 BALDOR 1/8HP Right Angle 180VDC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

14 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501.31.4000

UPC:

781568124192

Technical Details

Design:

Right Angle Shaft

Input HP:

1/8

Output KW:

0.093

Output RPM:

30

Gear Ratio:

58:1

Torque Lb-in.:

120

Overhung Load (lb.):

125

Voltage:

180

Full Load Amperage:

0.64

Application:

General Purpose

Product Information Packet

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.

FEATURES:

  • DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
  • Single Output 3/4" Keyed output shaft
  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Reversible
  • Powder-coated enamel finish
  • 3 ft. SJTO cord
