1/8HP BALDOR 78RPM TENV 180VDC GEARMOTOR GP7421

Catalog Number:  GP7421
Description:  1/8HP,78RPM,180VDC,TENV,RIGHT ANGLE
Ship Weight:  14 lbs.

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.

FEATURES:

  • DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Single output shaft is 5/8" diameter
  • Reversible
  • Powder-coated enamel finish
  • 3 ft. SJTO cord
Catalog Number: GP7421
Specification Number: 24A019Z029G2
Phase: DC
Voltage: 180
Output RPM: 78
Torque: 60
Ratio: 22.5
Amps: .64
Insulation: F
Rotation: R
Enclosure: TENV
Type: 2420P
Brush Part Number: 2/BP5052BP01
Electrical Specification Number: 24WGZ029

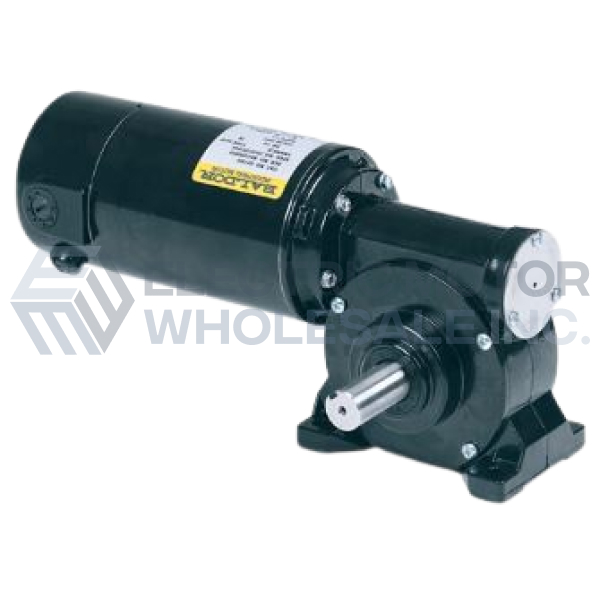

1/8HP BALDOR 78RPM TENV 180VDC GEARMOTOR GP7421
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: GP7421
Stock # GP7421
Price: $400.00
Compare At: $770.00
Quantity:
