1/4HP BALDOR 76RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP7407
1/4HP BALDOR 76RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP7407

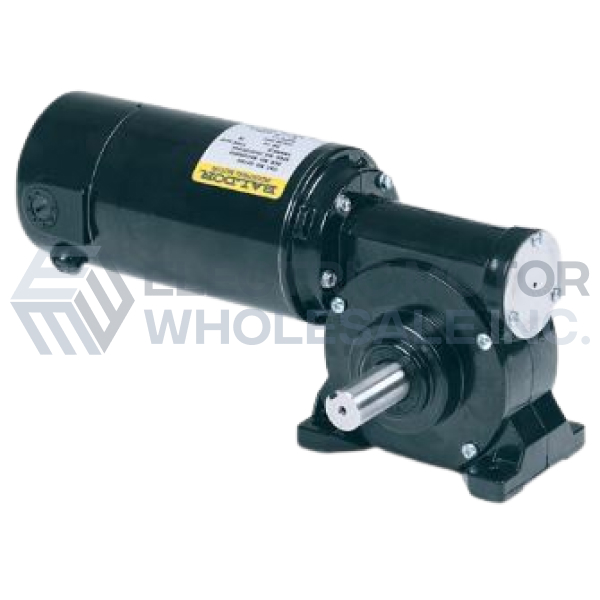

Picture is for reference only.
Part Number:
GP7407Model/Spec Number:
24A011Z023G6Manufacturer:
Baldor Obsolete MotorsClick below to request an agent review potential options.
Shipping Details
Weight:
14 lbsDimensions:
8 x 16 x 8 inchesHS Code:
8501.31.4000UPC:
781568124253Technical Details
Specifications
Design: | Right Angle Shaft |
Input HP: | 1/4 |
Output KW: | 0.186 |
Output RPM: | 76 |
Gear Ratio: | 45:1 |
Torque Lb-in.: | 100 |
Overhung Load (lb.): | 125 |
Voltage: | 90 |
Full Load Amperage: | 2.5 |
Application: | General Purpose |
Documentation
Additional Information
APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.
FEATURES:
- DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
- Dual 3/4" (.750") Keyed output shafts
- Ball bearing on output for smooth torque transmission
- High strength bronze gearing
- Hardened and ground worm
- Permanently lubricated with synthetic Mobil SHC634 oil
- Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
- Reversible
- Powder-coated enamel finish
- 3 ft. SJTO cord
