1/2HP BALDOR 63RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP3306

1/2HP BALDOR 63RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP3306

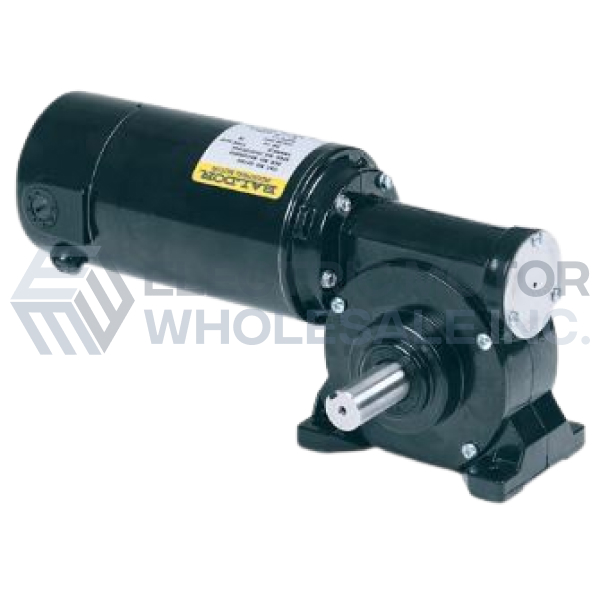

RIGHT ANGLE J STYLE.jpg
Picture is for reference only.

Part Number:

GP3306

Model/Spec Number:

33-2408Z148G1K1

Manufacturer:

Baldor Obsolete Motors
GP3306 BALDOR 1/2HP Right Angle 90VDC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

30 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501.31.4000

UPC:

781568757475

Technical Details

Design:

Right Angle Shaft

Input HP:

1/2

Output KW:

0.373

Output RPM:

63

Gear Ratio:

40:1

Torque Lb-in.:

215

Overhung Load (lb.):

125

Voltage:

90

Application:

General Purpose

Frame Series:

JH

Product Information Packet

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.

FEATURES:

  • DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
  • Single 3/4" Keyed output shaft
  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Reversible
  • Powder-coated enamel finish
  • 3 ft. SJTO cord
