1/2HP BALDOR 250RPM TENV 90VDC GEARMOTOR GP3301
| Catalog Number: | GP3301 - In Stock |
| Spec Number: | 33-2408Z148G1K2 |
| Description: | 1/2HP,250RPM,90VDC,TENV,RIGHT ANGLE |
| Ship Weight: | 30 lbs. |
APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.
FEATURES:
- DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
- Single 3/4" Keyed output shaft
- Ball bearing on output for smooth torque transmission
- High strength bronze gearing
- Hardened and ground worm
- Permanently lubricated with synthetic Mobil SHC634 oil
- Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
- Reversible
- Powder-coated enamel finish
- 3 ft. SJTO cord
| Catalog Number: | GP3301 |
| Specification Number: | 33-2408Z148G1K2 |
| Phase: | DC |
| Voltage: | 90 |
| Output RPM: | 250 |
| Torque: | 100 |
| Ratio: | 10 |
| Amps: | 5.00 |
| Insulation: | F |
| Rotation: | R |
| Enclosure: | TENV |
| Type: | 3327P |
| Brush Part Number: | 2/BP5011CV01 |
| Electrical Specification Number: | N/A |

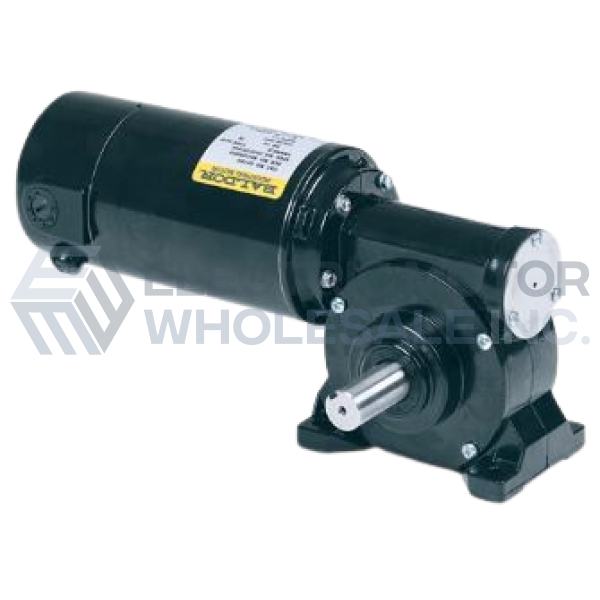

Click Image to Enlarge
