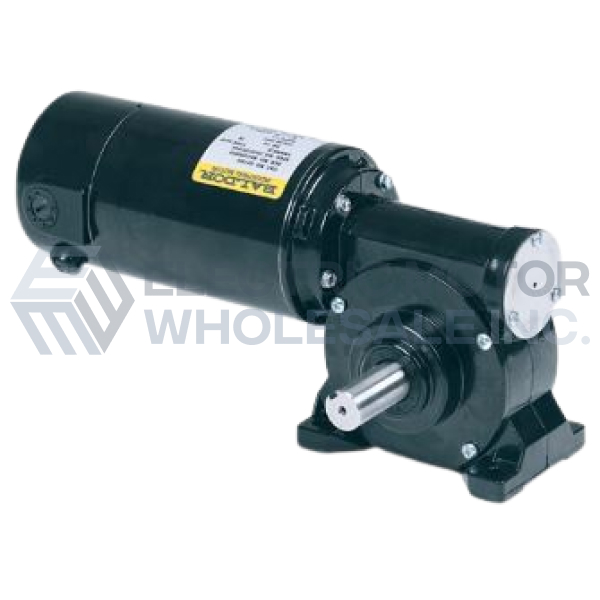

1/3HP BALDOR 62RPM TENV 90VDC GEARMOTOR GP2506
12 IN STOCK
| Catalog Number: | GP2506 |
| Spec Number: | 25A090Z009G4 |
| Description: | 1/3HP,62RPM,90VDC,TENV,RIGHT ANGLE |
| Ship Weight: | 21 lbs. |
APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.
FEATURES:
- DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
- Ball bearing on output for smooth torque transmission
- High strength bronze gearing
- Hardened and ground worm
- Permanently lubricated with synthetic Mobil SHC634 oil
- Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
- Single output shaft is 3/4" diameter
- Reversible
- Powder-coated enamel finish
- 3 ft. SJTO cord
| Catalog Number: | GP2506 |
| Specification Number: | 25A090Z009G4 |
| Phase: | DC |
| Voltage: | 90 |
| Output RPM: | 62 |
| Torque: | 137 |
| Ratio: | 40 |
| Amps: | 3.36 |
| Insulation: | F |
| Rotation: | R |
| Enclosure: | TENV |
| Type: | 2532P |

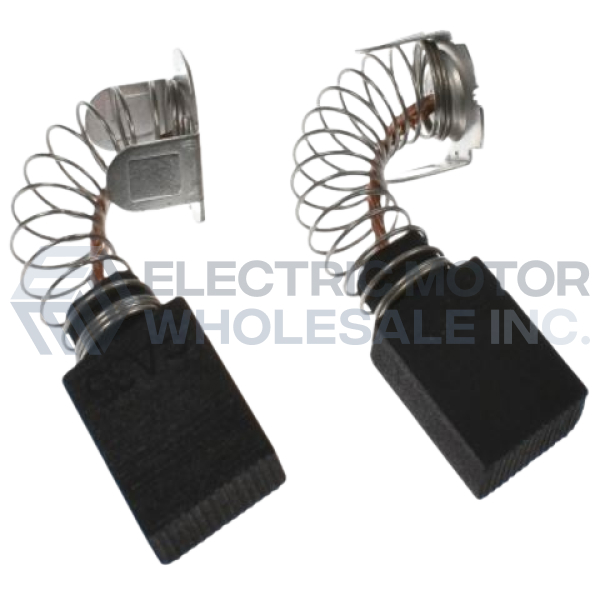

| Brush Part Number: | 2/BP5040AL01 |
| Electrical Specification Number: | 25WGZ009 |
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: GP2506
Stock # GP2506
