1/3HP BALDOR 247RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP2501
1/3HP BALDOR 247RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP2501

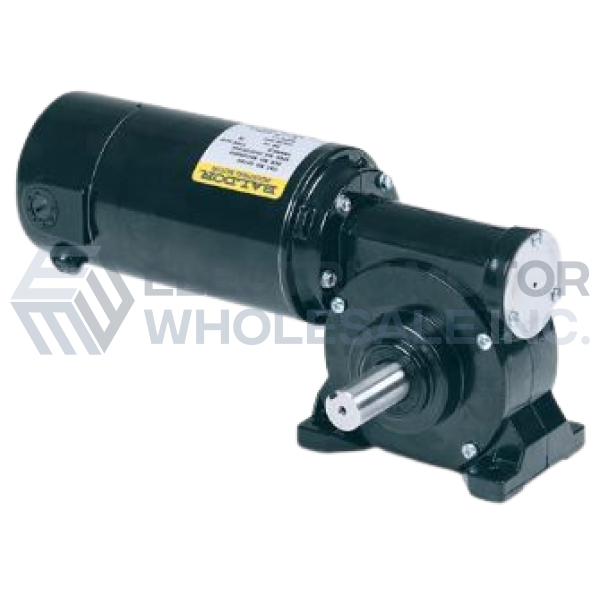

Picture is for reference only.
Part Number:
GP2501Model/Spec Number:
25A090Z009G1Manufacturer:
Baldor Obsolete MotorsClick below to request an agent review potential options.
Shipping Details
Weight:
21 lbsDimensions:
16 x 20 x 16 inchesHS Code:
8501.31.4000UPC:
781568648834Technical Details
Specifications
Design: | Right Angle Shaft |
Input HP: | 1/3 |
Output KW: | 0.249 |
Output RPM: | 247 |
Gear Ratio: | 10:1 |
Torque Lb-in.: | 65 |
Overhung Load (lb.): | 125 |
Voltage: | 90 |
Full Load Amperage: | 3.36 |
Application: | General Purpose |
Documentation
Additional Information
APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.
FEATURES:
- DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
- Ball bearing on output for smooth torque transmission
- High strength bronze gearing
- Hardened and ground worm
- Permanently lubricated with synthetic Mobil SHC634 oil
- Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
- Single output shaft is 3/4" diameter
- Reversible
- Powder-coated enamel finish
- 3 ft. SJTO cord
