1/22HP BALDOR 8.5RPM TENV 180VDC RIGHT ANGLE GEARMOTOR GP233028

1/22HP BALDOR 8.5RPM TENV 180VDC RIGHT ANGLE GEARMOTOR GP233028

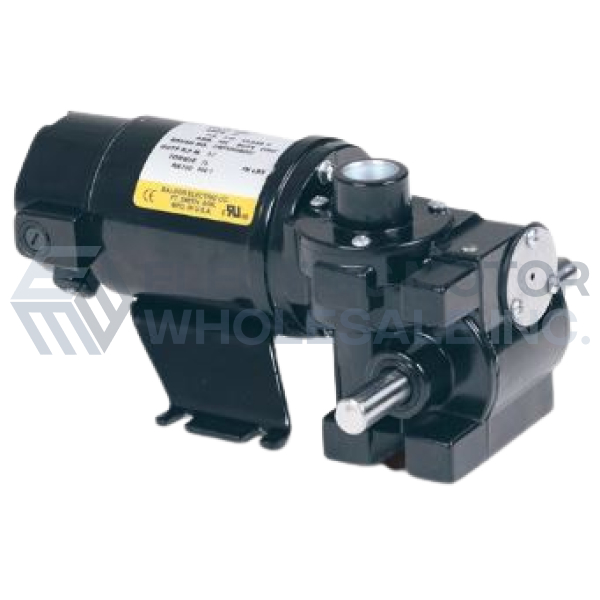

RIGHT ANGLE D STYLE.jpg
Picture is for reference only.

Part Number:

GP233028

Model/Spec Number:

23A005Z008G4

Manufacturer:

Baldor Obsolete Motors
GP233028 BALDOR 1/22HP Right Angle 180VDC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

7 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501.31.2000

UPC:

781568182222

Technical Details

Design:

Right Angle Shaft

Input HP:

1/22

Output KW:

0.034

Output RPM:

8.5

Gear Ratio:

310:1

Torque Lb-in.:

66

Overhung Load (lb.):

60

Voltage:

180

Full Load Amperage:

0.26

Application:

General Purpose

Product Information Packet

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.

FEATURES:

  • DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
  • Ball bearing on output for smooth torque transmission
  • High strength bronze gearing
  • Hardened and ground worm
  • Permanently lubricated with synthetic Mobil SHC634 oil
  • Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
  • Single output shaft is 5/8" diameter
  • Reversible
  • Powder-coated enamel finish
  • 3 ft. SJTO cord
