1/83HP BALDOR 1.9RPM TENV 180VDC RIGHT ANGLE GEARMOTOR GP233020
1/83HP BALDOR 1.9RPM TENV 180VDC RIGHT ANGLE GEARMOTOR GP233020

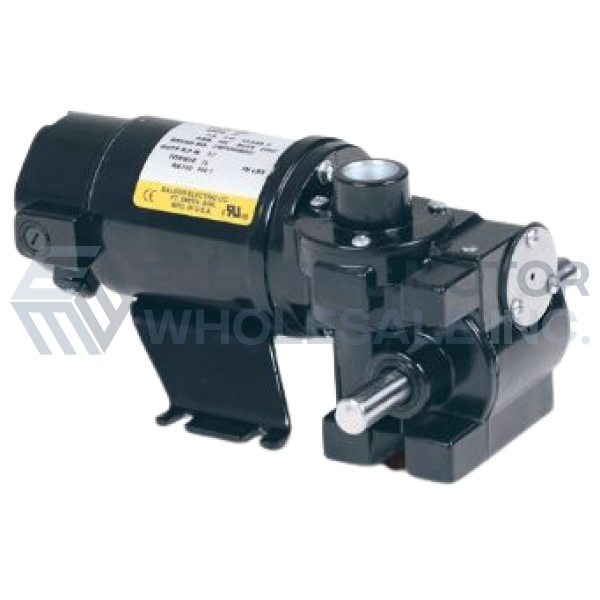

Picture is for reference only.
Part Number:
GP233020Model/Spec Number:
23A005Z007G1Manufacturer:
Baldor Obsolete MotorsClick below to request an agent review potential options.
Shipping Details
Weight:
7 lbsDimensions:
8 x 16 x 8 inchesHS Code:
8501.31.2000UPC:
781568182277Technical Details
Specifications
Design: | Right Angle Shaft |
Input HP: | 1/83 |
Output KW: | 0.009 |
Output RPM: | 1.9 |
Gear Ratio: | 1100:1 |
Torque Lb-in.: | 75 |
Overhung Load (lb.): | 60 |
Voltage: | 180 |
Full Load Amperage: | 0.11 |
Application: | General Purpose |
Documentation
Additional Information
APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.
FEATURES:
- DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
- Ball bearing on output for smooth torque transmission
- High strength bronze gearing
- Hardened and ground worm
- Permanently lubricated with synthetic Mobil SHC634 oil
- Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
- Dual output shaft is 1/2" diameter
- Reversible
- Powder-coated enamel finish
- 3 ft. SJTO cord
