1/15HP BALDOR 19.6RPM 90VDC RIGHT ANGLE GEARMOTOR GP232007

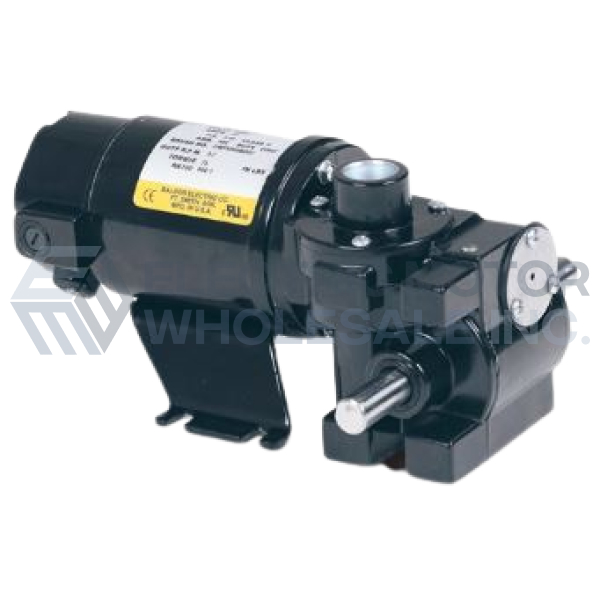

Picture is for reference only.

Part Number:

GP232007

Model/Spec Number:

23A005Z005G1

Manufacturer:

Baldor Obsolete Motors

GP232007 BALDOR 1/15HP Right Angle 90VDC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

7 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501.31.2000

UPC:

781568182338

Technical Details

Specifications

Design:	Right Angle Shaft
Input HP:	1/15
Output KW:	0.05
Output RPM:	19.6
Gear Ratio:	130:1
Torque Lb-in.:	64
Overhung Load (lb.):	60
Voltage:	90
Full Load Amperage:	0.68
Application:	General Purpose

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, commercial broiling ovens, machine tools and many other applications requiring adjustable speed.

FEATURES:

DCPM motor provides exceptional starting torque
adjustable speed and predictable performance
Permaglide sleeve bearing on output for smooth torque transmission
Permanently lubricated for life with synthetic grease
Double Output shaft is 1/2" diameter
Reversible
Powder-coated enamel finish
Supplied with 3 ft. SJord

NOTE: Vertical motor below the gearhead is not recommended. Avoiding this position will provide greater protection against oil leakage back into the motor. Contact Baldor.com if this position cannot be avoided.
