1/97HP BALDOR 8RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP231005

1/97HP BALDOR 8RPM TENV 90VDC RIGHT ANGLE GEARMOTOR GP231005

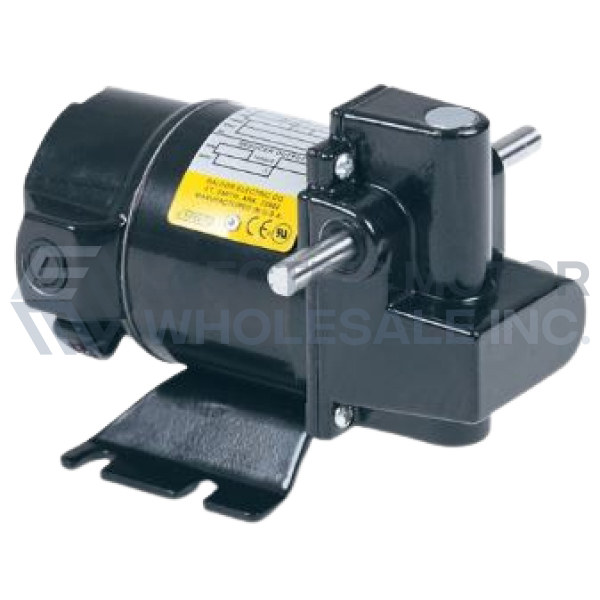

RIGHT ANGLE GNA STYLE.jpg
Picture is for reference only.

Part Number:

GP231005

Model/Spec Number:

23A012Z001G1

Manufacturer:

Baldor Obsolete Motors
GP231005 BALDOR 1/97HP Right Angle 90VDC Gearmotor. General purpose including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Weight:

5 lbs

Dimensions:

8 x 16 x 8 inches

HS Code:

8501.10.6060

UPC:

781568182239

Technical Details

Design:

Right Angle Shaft

Input HP:

1/97

Output KW:

0.008

Output RPM:

8

Gear Ratio:

225:1

Torque Lb-in.:

15

Overhung Load (lb.):

1.3

Voltage:

90

Full Load Amperage:

0.29

Application:

General Purpose

Product Information Packet

APPLICATIONS: Conveyors, medical and laboratory equipment, printing presses, machine tools and other applications requiring adjustable speed.

FEATURES:

  • DCPM motor provides exceptional starting torque, adjustable speed and predictable performance
  • Sleeve bearing on output for smooth torque transmission
  • Permanently lubricated for life with synthetic grease
  • Double output shaft is 5/16" diameter
  • Reversible
  • Powder-coated enamel finish
  • Supplied with 3 ft. SJTO cord
