GM3345 BALDOR 1/4HP RIGHT ANGLE GEARMOTOR 25E265W200G4

Electric Motors

Discontinued Electric Motors

Baldor Discontinued Motors

1/4HP BALDOR 85RPM TEFC RIGHT ANGLE GEARMOTOR GM3345

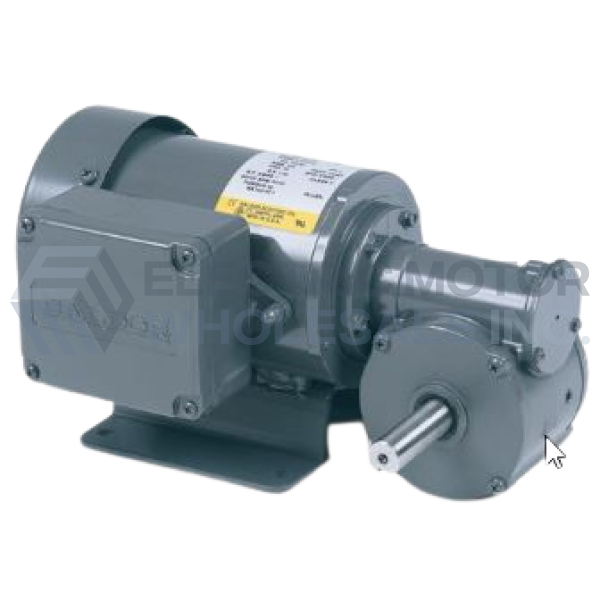

Picture is for reference only.

Part Number:

GM3345

Model/Spec Number:

25E265W200G4

Manufacturer:

Baldor Obsolete Motors

GM3345 BALDOR 1/4HP Right Angle Three Phase Gearmotor. General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

16 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501514020

UPC:

781568298183

Technical Details

Specifications

Design:	Right Angle Solid Shaft
Input HP:	1/4
Output KW:	0.19
Output RPM@60hz:	85
Gear Ratio:	20:1
Torque Lb-in.@60hz:	112
Overhung Load (lb.):	120
Voltage AC:	190/380, 230/460
Full Load Amp@60hz:	1.10
Frequency (Hz):	60//50

Documentation

Product Information Packet

Additional Information

APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

FEATURES:

Ball bearing on output for smooth torque transmission
High strength bronze gearing
Hardened and ground worm
Permanently lubricated with synthetic Mobil SHC634 oil
Internal oil expansion bladder allows for all position mounting without relocating a breather vent*
Single output shaft is 5/8" diameter
Reversible
Powered-coated enamel finish
12" leads
