1/12HP BALDOR 115RPM TENV RIGHT ANGLE GEARMOTOR GM25026
| Catalog Number: | GM25026 |
| Description: | 1/12HP,95//115RPM,3PH,TENV,50//60HZ |
| Ship Weight: | 12 lbs. |
APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.
FEATURES:
- Permaglide sleeve bearing on output for smooth torque transmission
- Permanently lubricated for life with Mobil SHC634 oil
- Internal oil expansion bladder allows for all position mounting without relocating a breather vent *
- Double output shaft is 1/2" diameter
- Reversible
- Powder-coated enamel finish
- 12" leads
| Catalog Number: | GM25026 |
| Specification Number: | 25E214W019G1 |
| Phase: | 3 |
| Voltage: | 208-230/460 |
| Output RPM: | 115 |
| Torque: | 30 |
| Ratio: | 15 |
| Amps: | .5-.54/.27 |
| Hertz: | 50//60 |
| Poles: | 04 |
| Insulation: | F |
| Rotation: | R |
| Enclosure: | TENV |
| Type: | 2516M |
| Mechanical Specification Number: | 25LYE214 |
| Electrical Specification Number: | 25WGW019 |

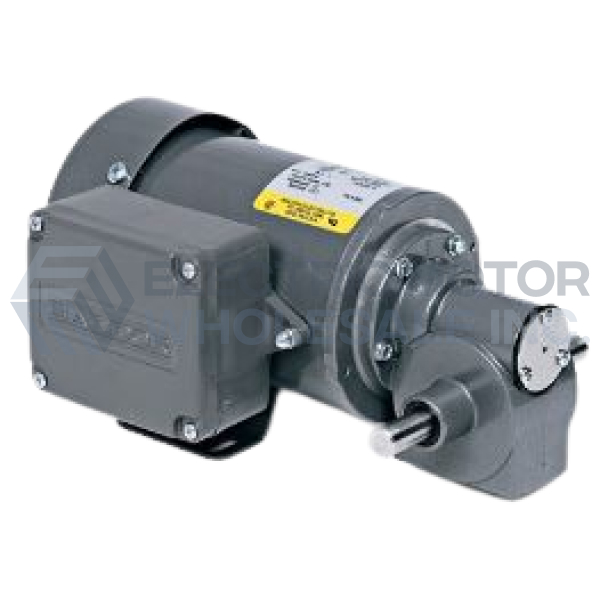

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: GM25026
Stock # GM25026
