3/4HP BALDOR 88RPM TEFC RIGHT ANGLE GEARMOTOR GHM37520

Catalog Number:  GHM37520
Description:  3/4HP,88RPM,3PH,TEFC,60HZ
Ship Weight:  42 lbs.

APPLICATIONS: General purpose fixed speed including conveyors, material handling equipment and packaging machinery.

FEATURES:

  • Hollow bore output shaft for direct connection to driven load
  • Permanently lubricated with synthetic H1 food grade oil
  • Supplied with torque arm and shaft cover
  • Suitable for horizontal or vertical motor above gearhead mounting
  • Reversible
  • Chill cast bronze gearing
Catalog Number: GHM37520
Specification Number: 34A63-883K4
Phase: 3
Voltage: 208-230/460
Output RPM: 88
Torque: 420
Ratio: 20
Amps: 3.2-3/1.5
Hertz: 60
Poles: 04
Insulation: B
Rotation: R
Enclosure: TEFC
Type: 3428M
Mechanical Specification Number: 34A63-883K4
Electrical Specification Number: 34WG0883

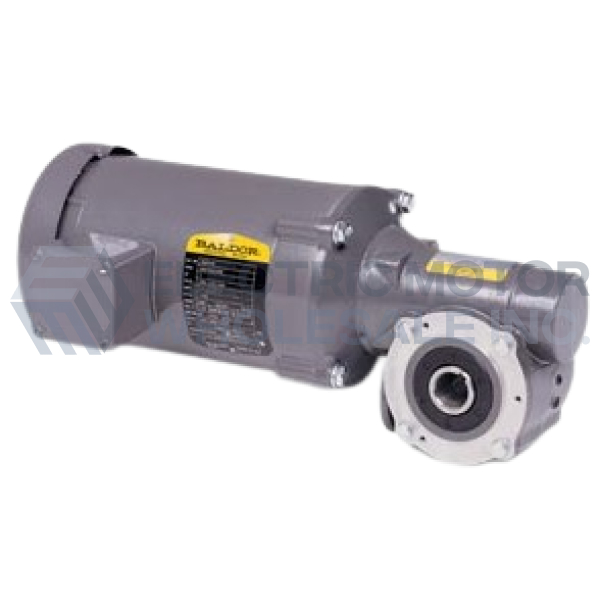

3/4HP BALDOR 88RPM TEFC RIGHT ANGLE GEARMOTOR GHM37520
Click Image to Enlarge
Manufacturer Part Number: GHM37520
Stock # GHM37520
Price: $650.00
Compare At: $1,114.00
