GF2524BG BALDOR F-924-25-B7-G SPEED REDUCER

Gearing Products

Discontinued Gearing

Discontinued BALDOR Speed Reducers

BALDOR Right Angle Quill Solid Shaft Speed Reducer

F-924-25-B7-G BALDOR 25:1 Right Angle Speed Reducer GF2524BG

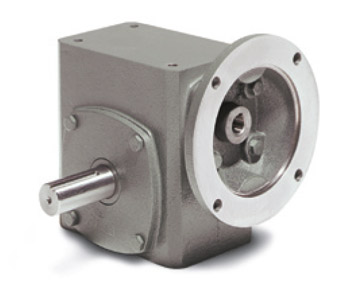

Picture is for reference only.

Part Number:

GF2524BG

Manufacturer:

Baldor Obsolete Gear

Manufacturer Part Number:

F-924-25-B7-G

GF2524BG BALDOR F-924-25-B7-G Right Angle Speed Reducer is designed for Wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

40 lbs

Dimensions:

14 x 14 x 14 inches

HS Code:

8483.00.0000

Technical Details

Specifications

Max Input HP @1750:	1.37
Output RPM @1750:	70
Reduction Ratio:	25:1
Torque (lb-in)@1750rpm:	1002
Shaft Center Distance:	2.38
Shaft Center Height:	2.50
Mount Footprint:	2.88” x 5.00”
NEMA Input Mounting:	143-5TC
Mount Style:	F
Series Size:	924

Documentation

Product Information Packet

Additional Information

APPLICATIONS: Wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc. FEATURES: Heavy duty cast iron housings Chill cast bronze gears Precision ground hardened worm Ball bearing on input shaft Tapered roller bearing on output shaft Industry-standard mounting dimensions Pre-filled with food grade (H1) Klubersynth UH1-6-460 synthetic oil Sealed housing provides maintenance-free lubed for life operation.
