F-913-05-B5-G BALDOR 5:1 Right Angle Speed Reducer GF0513AG
F-913-05-B5-G BALDOR 5:1 Right Angle Speed Reducer GF0513AG

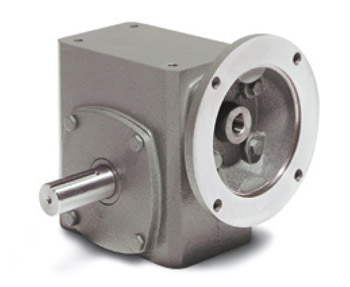

Picture is for reference only.
Part Number:
GF0513AGModel/Spec Number:
GR0131C058Manufacturer:
Baldor Obsolete GearManufacturer Part Number:
F-913-05-B5-GClick below to view suggested functional replacement.
Shipping Details
Weight:
25 lbsDimensions:
14 x 14 x 14 inchesHS Code:
8483.00.0000Technical Details
Specifications
Max Input HP @1750: | 1 |
Output RPM @1750: | 350 |
Reduction Ratio: | 5:1 |
Torque (lb-in)@1750rpm: | 165 |
Shaft Center Distance: | 1.33 |
Shaft Center Height: | 1.72 |
Mount Footprint: | 2.00” x 3.25” |
NEMA Input Mounting: | 56C |
Mount Style: | F |
Series Size: | 913 |
Documentation
Additional Information
APPLICATIONS: Wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.
FEATURES:
- Heavy duty cast iron housings
- Chill cast bronze gears
- Precision ground hardened worm
- Ball bearing on input shaft
- Tapered roller bearing on output shaft
- Industry-standard mounting dimensions
- Pre-filled with food grade (H1) Klubersynth UH1-6-460 synthetic oil
- Sealed housing provides maintenance-free lubed for life operation.
