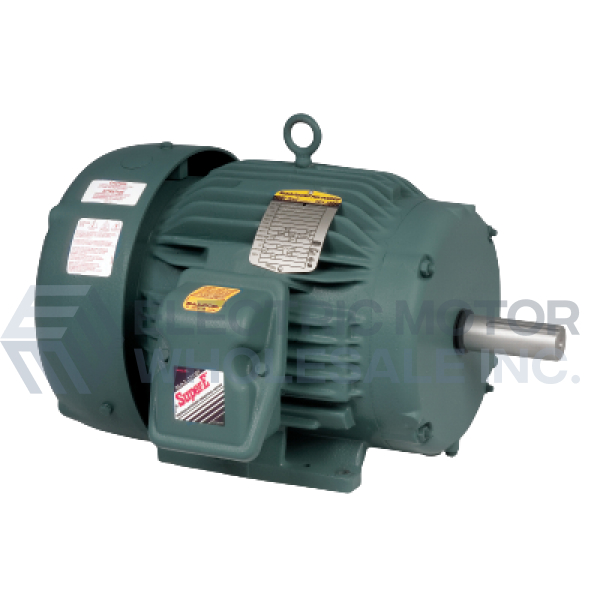

1HP BALDOR 3450RPM 143T 3PH XEX SEVERE DUTY SUPER-E MOTOR ENCP3580T-4

1HP BALDOR 3450RPM 143T 3PH XEX SEVERE DUTY SUPER-E MOTOR ENCP3580T-4

Picture is for reference only.

Part Number:

ENCP3580T-4

Model/Spec Number:

05E018W634G1

Manufacturer:

Baldor Obsolete Motors

Manufacturer Part Number:

7BENCP3580T-4
ENCP3580T-4 BALDOR 1HP XEX SEVERE DUTY SUPER-E Motor designed for Petro-chemical plants, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against severe environmental corrosion.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

55 lbs

Dimensions:

24 x 32 x 24 inches

HS Code:

8501516040

UPC:

781568464601

Technical Details

Brand:

Baldor

Application:

Severe Duty

Output HP:

1

Output KW:

0.75

Output RPM:

3450

Frame Size NEMA:

143T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

460

ENCP3580T-4-InfoPacket

This Baldor Motor is subject to availability.
For expedited needs please contact our sales team.

APPLICATIONS: Petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

FEATURES:

  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball or roller bearings
  • Oversized rotatable cast iron conduit box
  • Cast iron frames
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Tropicalization
  • Stainless steel nameplate and corrosion resistant hardware
  • 3 year warranty
