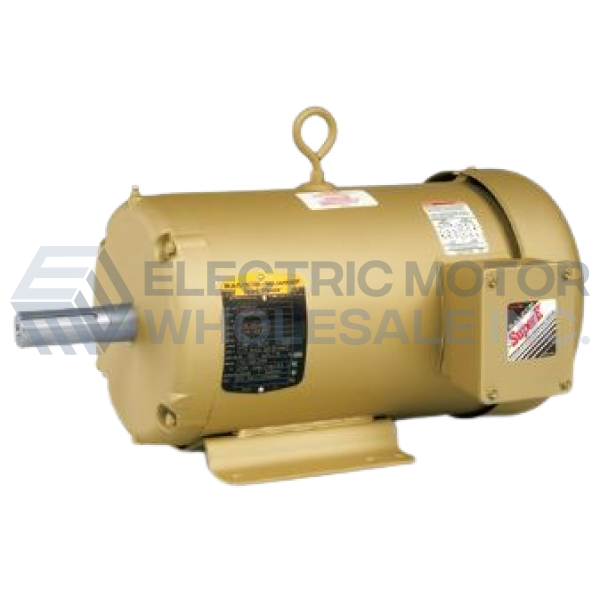

7.5HP BALDOR 3450RPM D132S TEFC 3PH MOTOR EMM3709

BALDOR MM3709 has been superseded to EMM3709

Catalog Number:  EMM3709
Description:  5.5KW-7.5HP,3450RPM,D132S,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  115 lbs.

APPLICATIONS: Designed for pumps, fans conveyors, machine tools, gear reducers and other applications requiring IEC Metric B3 base mount replacements.

FEATURES:

  • IEC-B3 mount
  • Conforms to IEC 60072-1 and IEC 60034-1.
  • Rigid Base
  • Conduit box mounted F-2
  • Pressure cast aluminum end plates with ribbed design for rigidity.
  • Ball bearings with a locked drive end bearing
  • Heavy-gauge steel frames and gasketed conduit box
  • Motors with shaded rows have cast iron frames and endplates.
SPEC. NUMBER: 37E617Y751G1
CATALOG NUMBER: EMM3709
FL AMPS: 18-17.2/8.6
208V AMPS: 18
BEARING-DRIVE-END: 6208
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 89.5
ENCLOSURE: TEFC
ENCLOSURE-INGRESS-PROT: 54
FRAME: D132S
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 3500
OUTPUT [hp]: 5.5KW
PHASE: 3
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460
7.5HP BALDOR 3450RPM D132S TEFC 3PH MOTOR EMM3709
Click Image to Enlarge
Manufacturer Part Number: EMM3709
Stock # EMM3709
Price: $842.00
Compare At: $1,449.00
