5HP BALDOR 1750RPM D112M TEFC 3PH MOTOR EMM3615

BALDOR MM3615 has been superseded to EMM3615

Catalog Number:  EMM3615
Description:  3.7KW-5HP,1750RPM,D112M,TEFC,3PH,60HZ,SUPER-E
Ship Weight:  90 lbs.

APPLICATIONS: Designed for pumps, fans conveyors, machine tools, gear reducers and other applications requiring IEC Metric B3 base mount replacements.

FEATURES:

  • IEC-B3 mount
  • Conforms to IEC 60072-1 and IEC 60034-1.
  • Rigid Base
  • Conduit box mounted F-2
  • Pressure cast aluminum end plates with ribbed design for rigidity.
  • Ball bearings with a locked drive end bearing
  • Heavy-gauge steel frames and gasketed conduit box
  • Motors with shaded rows have cast iron frames and endplates.
SPEC. NUMBER: 36M718S268G1
CATALOG NUMBER: EMM3615
FL AMPS: 13.9-13.4/6.7
208V AMPS: 13.9
BEARING-DRIVE-END: 6206
BEARING-OPP-DRIVE-END: 6205
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 89.5
ENCLOSURE: TEFC
ENCLOSURE-INGRESS-PROT: 54
FRAME: D112M
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: J
SPEED [rpm]: 1750
OUTPUT [hp]: 3.7KW
PHASE: 3
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

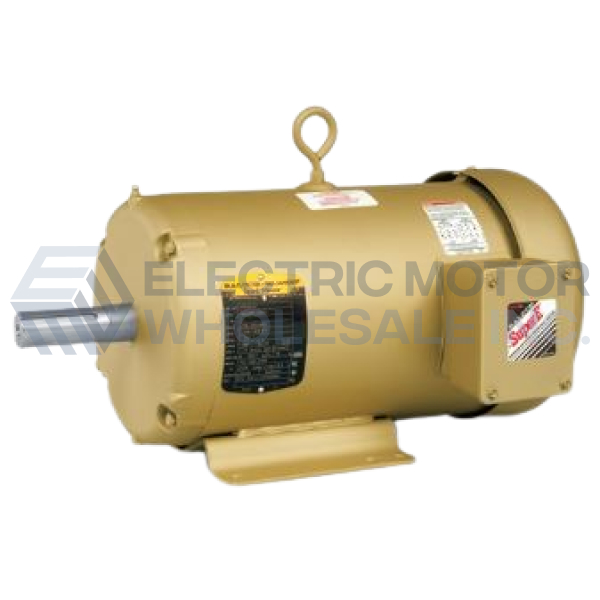

5HP BALDOR 1750RPM D112M TEFC 3PH MOTOR EMM3615
Click Image to Enlarge
Manufacturer Part Number: EMM3615
Stock # EMM3615
Price: $596.00
Compare At: $1,026.00
Quantity:
