200HP BALDOR 1785RPM 449T XPFC 3PH EXPLOSION PROOF SUPER-E MOTOR EM74204T-4

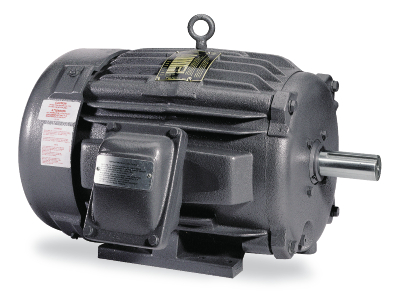

Picture is for reference only.

Part Number:

EM74204T-4

Model/Spec Number:

A44-7167-1549

Manufacturer:

Baldor Obsolete Motors

EM74204T-4 BALDOR 200HP Premium Efficient Motor is ideal for use where hazardous fumes or dust may be present.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

3,000 lbs

Dimensions:

14 x 20 x 14 inches

HS Code:

8501536000

UPC:

781568546574

Technical Details

Specifications

Brand:	Baldor
Application:	Explosion Proof
Output HP:	200//150
Output KW:	150
Output RPM:	1785//1485
Frame Size NEMA:	449T
Mount NEMA:	With Base
Enclosure NEMA:	XPFC//TEFC
Voltage:	460//380
Frequency (Hz):	60//50

Documentation

EM74204T-4-InfoPacket

Explosion-Proof-Definitions

Additional Information

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

Cast Iron frame
U.L. and CSA approved for Class I, Group D, Class II, Group F & G, T3C
Available in 182T through 449T frames (-c models)
Corrosion resistant epoxy finish
U.L. approved cast conduit box standard
1.00 Service Factor
EM Super-E® explosion proof motors have NEMA premium efficiency and 3 year warranty.

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications. These explosion-proof motors are not suitable for use with adjustable speed drives "VFD", inverter duty explosion-proof motors must be used.
