7.5HP BALDOR 1770RPM 213T XPFC 3PH MOTOR EM7147T-C

BALDOR Catalog Number:  EM7147T-C
Description:  7.5HP,1770RPM,213T,XPFC,3PH,60/50HZ,SUPER-E
Ship Weight:  225 lbs.

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

  • Cast Iron frame
  • U.L. and CSA approved for Class I, Group C & D, Class II, Group F & G, T4
  • Available in 182T through 449T frames (-c models)
  • Corrosion resistant epoxy finish
  • U.L. approved cast conduit box standard
  • 1.00 Service Factor
  • EM Super-E® explosion proof motors have NEMA premium efficiency and 3 year warranty.

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications. These explosion-proof motors are not suitable for use with adjustable speed drives "VFD", inverter duty explosion-proof motors must be used.

CATALOG NUMBER: EM7147T-C
FL AMPS: 19/9.5//16/8
208V AMPS: N/A
DESIGN CODE: A
DOE-CODE: 010A
FL EFFICIENCY: 91.7
FRAME: 213T
HERTZ: 60//50
INSULATION-CLASS: B
KVA-CODE: J
SPEED [rpm]: 1770//1470
NAMEPLATE-SERIAL-NUMBER: --
OUTPUT [hp]: 7 1/2//5
PHASE: 3
POWER-FACTOR: 81
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SPEC. NUMBER: 07H841X790G1
TEMP. CODE: T4
VOLTAGE: 230/460//190/380

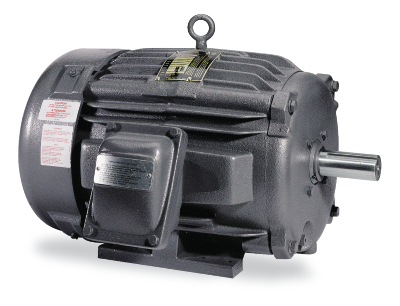

7.5HP BALDOR 1770RPM 213T XPFC 3PH MOTOR EM7147T-C
Click Image to Enlarge
Manufacturer Part Number: EM7147T-C
Stock # EM7147T-C
Price: $1,439.00
Compare At: $2,477.00
