2HP BALDOR 1750RPM 145T XPFC 3PH MOTOR EM7137T-C

BALDOR Catalog Number:  EM7137T-C
Description:  2HP,1750RPM,145T,XPFC,3PH,60HZ,SUPER-E
Ship Weight:  92 lbs.

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

  • Cast Iron frame
  • U.L. and CSA approved for Class I, Group C & D, Class II, Group F & G, T4
  • Available in 182T through 449T frames (-c models)
  • Corrosion resistant epoxy finish
  • U.L. approved cast conduit box standard
  • 1.00 Service Factor
  • EM Super-E® explosion proof motors have NEMA premium efficiency and 3 year warranty.

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications. These explosion-proof motors are not suitable for use with adjustable speed drives "VFD", inverter duty explosion-proof motors must be used.

208V AMPS: --
BLANK-22: 010A
DESIGN CODE: B
FL EFFICIENCY: 86.5
FRAME: 145T
FRONT-BEARING: 6203
GREASE: POLYREX EM
HERTZ: 60
INSULATION-CLASS: B
KVA-CODE: L
CATALOG NUMBER: EM7137T-C
SPEC. NUMBER: 05E347X095G1
SPEED [rpm]: 1750
MOTOR-WEIGHT: 60 LBS
NAMEPLATE-SERIAL-NUMBER: --
OUTPUT [hp]: 2
PHASE: 3
POWER-FACTOR: 75
PULLEY-BEARING: 6205
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
TEMPERATURE-CODE: T3C
VOLTAGE: 208-230/460
FL AMPS: 5.8/2.9

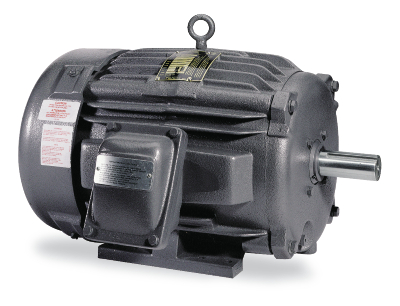

2HP BALDOR 1750RPM 145T XPFC 3PH MOTOR EM7137T-C
Click Image to Enlarge
Manufacturer Part Number: EM7137T-C
Stock # EM7137T-C
Price: $883.00
Compare At: $1,519.00
