100HP BALDOR 1780RPM 405T XPFC 3PH MOTOR EM7090T

BALDOR Catalog Number:  EM7090T - FREE Ground Shipping in USA
Description:  100HP,1780RPM,405T,XPFC,3PH,60HZ,SUPER-E
Ship Weight:  1449 lbs.

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

  • Cast Iron frame
  • U.L. and CSA approved for Class I, Group D, Class II, Group F & G, T3C
  • Available in 182T through 449T frames (-c models)
  • Corrosion resistant epoxy finish
  • U.L. approved cast conduit box standard
  • 1.00 Service Factor
  • EM Super-E® explosion proof motors have NEMA premium efficiency and 3 year warranty.

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications. These explosion-proof motors are not suitable for use with adjustable speed drives "VFD", inverter duty explosion-proof motors must be used.

CLASS-I-GROUP: C D X
CLASS-II-GROUP: F G X
TEMP. CODE: T4
AG-BLANK-LINE-1B: --
AG-BLANK-LINE-2A: SUIT FOR 208V @ 248 AMPS
AG-BLANK-LINE-2B: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 224/112//206/103
BRG-DE-AFBMA: 80BC03JPP30A
BRG-ODE-AFBMA: 80BC03JPP30A
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95.4
ENCLOSURE: TEFC
CATALOG NUMBER: EM7090T
SPEC. NUMBER: P40G4845
FRAME: X405T
HERTZ: 60//50
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1780//1485
MOTOR-WEIGHT: --
OUTPUT [hp]: 100//75
PHASE: 3
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
TYPE: P
VOLTAGE: 230/460//190/380
AG-BLANK-LINE-1A: OVER TEMP PROT 2

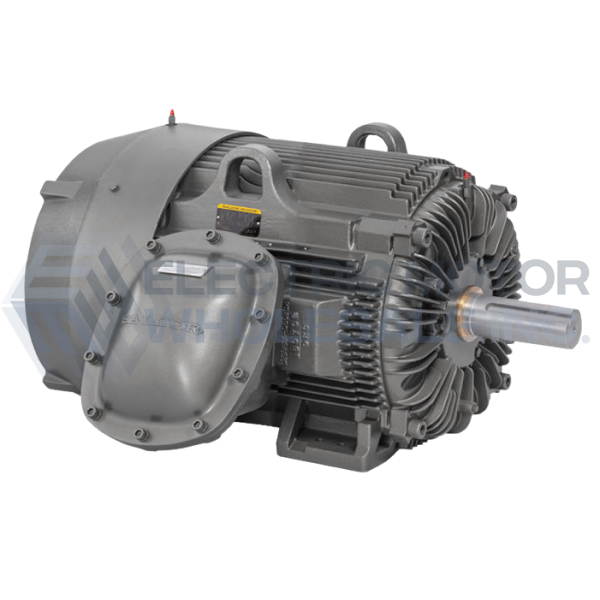

100HP BALDOR 1780RPM 405T XPFC 3PH MOTOR EM7090T
Click Image to Enlarge
Manufacturer Part Number: EM7090T
Stock # EM7090T
Price: $10,023.00
Compare At: $17,576.00
