100HP BALDOR 1780RPM 405T XPFC MOTOR EM7090T-I

Catalog Number:  EM7090T-I - FREE Ground Shipping in USA
Description:  100HP,1780RPM,405T,XPFC,3PH,60HZ,DRILL RIG DUTY
Ship Weight:  1375 lbs.

APPLICATIONS: Ideal for on and off shore drill rig service, bulk fuel terminals, and transfer stations. For use in high humidity hazardous-duty applications driving pumps, compressors, blowers, fans, and many other loads that require 1.15 service factor explosion-proof motors.

Features:

  • Labyrinth-type recessed metal shaft slinger for increased bearing protection
  • Explosion-proof breather/drain to prevent build up of condensation
  • 40°C ambient, Class F insulation
  • Cast Iron frame
  • Corrision resistant finish with two part epoxy coating
  • U.L. and CSA approved for Class I, Group C & D, T3C
  • Suitable for 55°C at 1.15 service factor.
CLASS-I-GROUP: C D X
CLASS-II-GROUP: X X X
TEMP. CODE: T3C
AG-BLANK-LINE-2B: --
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-1B: --
AG-BLANK-LINE-1A: SUIT FOR 208V @ 248 AMPS
VOLTAGE: 230/460//190/380
TYPE: P
SERVICE FACTOR: 1.15
SERIAL-NUMBER: --
PHASE: 3
AMBIENT-TEMPERATURE: 40
FL AMPS: 224/112//206/103
BRG-DE-AFBMA: 80BC03JPP30A
BRG-ODE-AFBMA: 80BC03JPP30A
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95.4
ENCLOSURE: TEFC
CATALOG NUMBER: EM7090T-I
SPEC. NUMBER: P40G4846
FRAME: X405T
HERTZ: 60//50
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1780//1485
MOTOR-WEIGHT: --
OUTPUT [hp]: 100//75

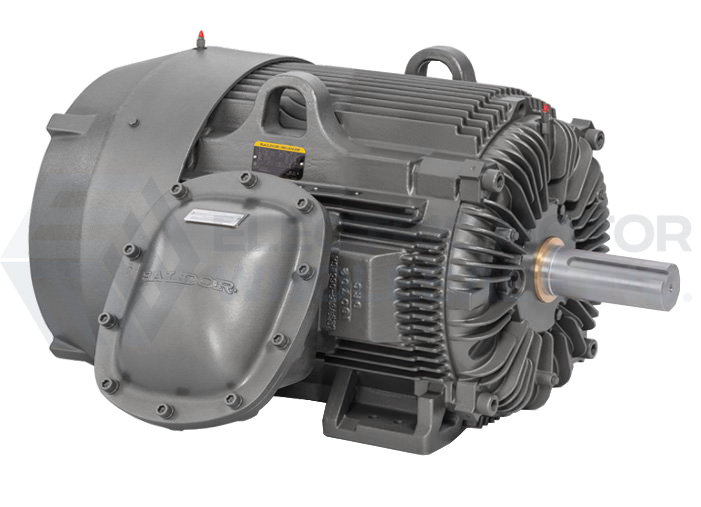

100HP BALDOR 1780RPM 405T XPFC MOTOR EM7090T-I
Click Image to Enlarge
Picture is for quick refrence only
Manufacturer Part Number: EM7090T-I
Stock # EM7090T-I
Price: $9,303.00
Compare At: $16,981.00
