EM7064T-C BALDOR 50HP 3PH EXPLOSION PROOF SUPER-E MOTOR 12R031Y141G1

Electric Motors

Discontinued Electric Motors

Baldor Discontinued Motors

50HP BALDOR 1775RPM 326T XPFC 3PH EXPLOSION PROOF SUPER-E MOTOR EM7064T-C

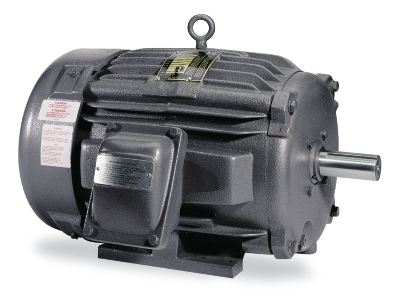

Picture is for reference only.

Part Number:

EM7064T-C

Model/Spec Number:

12R031Y141G1

Manufacturer:

Baldor Obsolete Motors

EM7064T-C BALDOR 50HP Premium Efficient Motor is ideal for use where hazardous fumes or dust may be present.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

790 lbs

Dimensions:

14 x 20 x 14 inches

HS Code:

8501528040

UPC:

781568296028

Technical Details

Specifications

Brand:	Baldor
Application:	Explosion Proof
Output HP:	50//40
Output KW:	37
Output RPM:	1775//1470
Frame Size NEMA:	326T
Mount NEMA:	With Base
Enclosure NEMA:	XPFC
Voltage:	230/460//190/380
Frequency (Hz):	60//50

Documentation

EM7064T-C-InfoPacket

Explosion-Proof-Definitions

Additional Information

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

Cast Iron frame
U.L. and CSA approved for Class I, Group C & D, Class II, Group F & G, T4
Available in 182T through 449T frames (-c models)
Corrosion resistant epoxy finish
U.L. approved cast conduit box standard
1.00 Service Factor
EM Super-E® explosion proof motors have NEMA premium efficiency and 3 year warranty.

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications. These explosion-proof motors are not suitable for use with adjustable speed drives "VFD", inverter duty explosion-proof motors must be used.
