EM7057T BALDOR 15HP EXPLOSION PROOF SUPER-E MOTOR 10E106Y561G1

Electric Motors

Discontinued Electric Motors

Baldor Discontinued Motors

15HP BALDOR 1175RPM 284T XPFC 3PH EXPLOSION PROOF SUPER-E MOTOR EM7057T

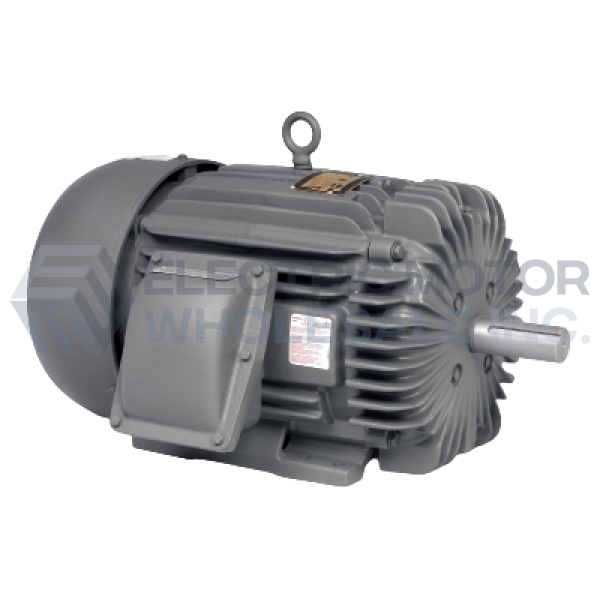

Picture is for reference only.

Part Number:

EM7057T

Model/Spec Number:

10E106Y561G1

Manufacturer:

Baldor Obsolete Motors

EM7057T BALDOR 15HP Premium Efficient Motor is ideal for use where hazardous fumes or dust may be present.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

478 lbs

Dimensions:

14 x 20 x 14 inches

HS Code:

8501.52.4000

UPC:

781568539088

Technical Details

Specifications

Brand:	Baldor
Application:	Explosion Proof
Output HP:	15//10
Output KW:	11
Output RPM:	1175//985
Frame Size NEMA:	284T
Mount NEMA:	With Base
Enclosure NEMA:	XPFC
Voltage:	230/460//190/380
Frequency (Hz):	60//50

Documentation

EM7057T-InfoPacket

Explosion-Proof-Definitions

Additional Information

APPLICATIONS: Ideal for wide variety of applications where hazardous fumes or dust may be present.

FEATURES:

Cast Iron frame
U.L. and CSA approved for Class I, Group D, Class II, Group F & G, T3C
Available in 182T through 449T frames (-c models)
Corrosion resistant epoxy finish
U.L. approved cast conduit box standard
1.00 Service Factor
EM Super-E® explosion proof motors have NEMA premium efficiency and 3 year warranty.

CAUTION: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty. Consider Drill Rig Duty Explosion-proof motors for outdoor applications. These explosion-proof motors are not suitable for use with adjustable speed drives "VFD", inverter duty explosion-proof motors must be used.
