200HP BALDOR 3570RPM 447TS TEFC 3PH MOTOR EM4416T-4

Catalog Number: EM4416T-4
Description: 200HP,3570RPM,447TS,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 2330 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 213
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95.4
EFFICIENCY-2: 94.5
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: EM4416T-4
SPEC. NUMBER: P44G5691
AG-BLANK-LINE-1A: --
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
MAX. KVAR: 21.0
SPEED [rpm]: 3570
MOTOR-WEIGHT: --
OUTPUT [hp]: 200
PHASE: 3
POWER-FACTOR: 91
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 460
FRAME: 447TS

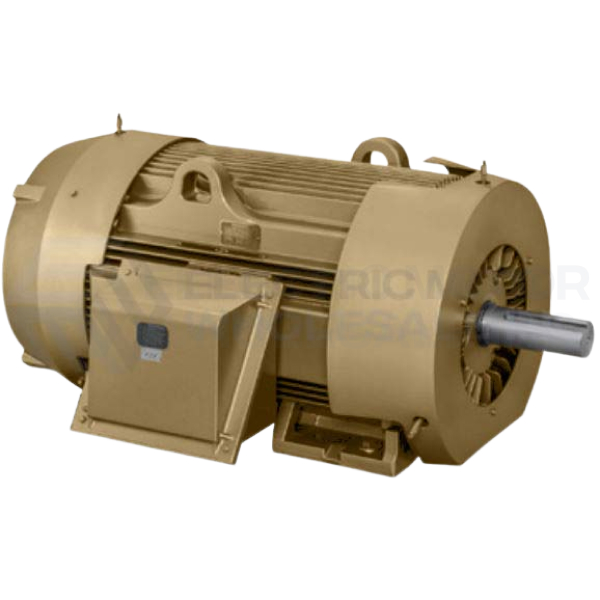

200HP BALDOR 3570RPM 447TS TEFC 3PH MOTOR EM4416T-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4416T-4
Stock # EM4416T-4
Price: $13,601.00
Compare At: $23,416.00
