150HP BALDOR 1785RPM 445TS TEFC 3PH MOTOR EM4406TS-4

Catalog Number: EM4406TS-4 - FREE Ground Shipping in USA
Description: 150HP,1780RPM,445TS,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 2184 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • 2 3/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 169
BRG-DE-AFBMA: 90BC03J30X
BRG-ODE-AFBMA: 90BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95.8
EFFICIENCY-2: 95.0
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: EM4406TS-4
SPEC. NUMBER: P44G6422
AG-BLANK-LINE-1A: --
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: F
MAX. KVAR: 30.0
SPEED [rpm]: 1785
MOTOR-WEIGHT: --
OUTPUT [hp]: 150
PHASE: 3
POWER-FACTOR: 86.3
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 460
FRAME: 445TS

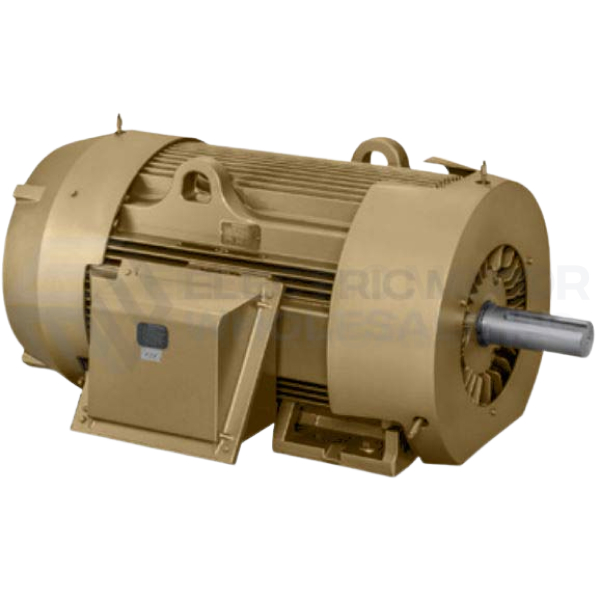

150HP BALDOR 1785RPM 445TS TEFC 3PH MOTOR EM4406TS-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4406TS-4
Stock # EM4406TS-4
Price: $10,517.00
Compare At: $18,443.00
