75HP BALDOR 1185RPM 405T TEFC 3PH MOTOR EM4404T

Catalog Number: EM4404T - FREE Ground Shipping in USA
Spec Number: P40G3931
Description: 75HP,1185RPM,405T,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 1229 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

FEATURES:

  • Ball bearings
  • 2-7/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy duty cast iron frames
  • 3 year warranty

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

AG-BLANK-LINE-1B: --
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-2B: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 173/86.9
BRG-DE-AFBMA: 80BC03J30X
BRG-ODE-AFBMA: 80BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95
ENCLOSURE: TEFC
CATALOG NUMBER: EM4404T
SPEC. NUMBER: P40G335
FRAME: 405T
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1185
MOTOR-WEIGHT: --
OUTPUT [hp]: 75
PHASE: 3
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
AG-BLANK-LINE-1A: --
75HP BALDOR 1185RPM 405T TEFC 3PH MOTOR EM4404T

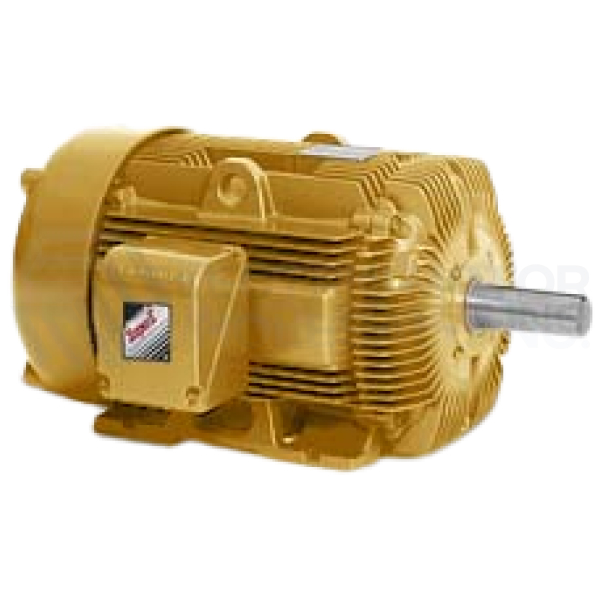

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4404T
Stock # EM4404T
Price: $8,195.00
Compare At: $14,371.00
