100HP BALDOR 1785RPM 405T TEFC 3PH MOTOR EM4400T-12

Catalog Number: EM4400T-12 - FREE Ground Shipping in USA
Description: 100HP,1785RPM,405T,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 1211 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • 2 7/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 224/112
BRG-DE-AFBMA: 80BC03J30X
BRG-ODE-AFBMA: 80BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95.4
EFFICIENCY-2: 95.0
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: EM4400T-12
SPEC. NUMBER: P40G4564
AG-BLANK-LINE-1A: --
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
MAX. KVAR: 18.0
SPEED [rpm]: 1785
MOTOR-WEIGHT: --
OUTPUT [hp]: 100
PHASE: 3
POWER-FACTOR: 87
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
FRAME: 405T

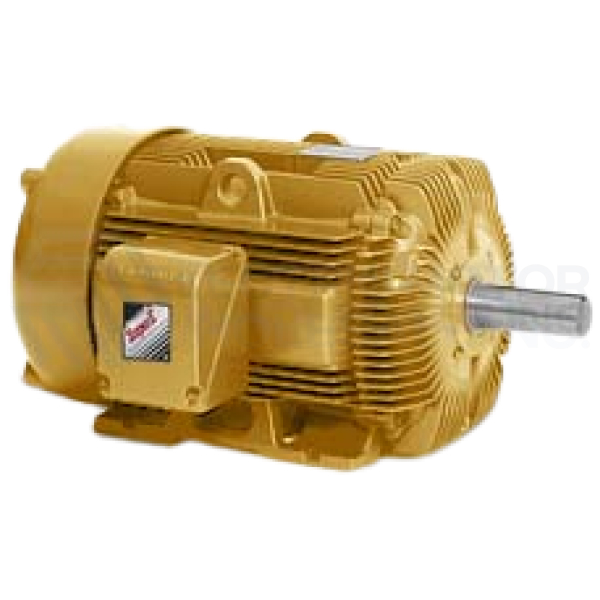

100HP BALDOR 1785RPM 405T TEFC 3PH MOTOR EM4400T-12
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4400T-12
Stock # EM4400T-12
Price: $8,494.00
Compare At: $14,895.00
