60HP BALDOR 1780RPM 364T TEFC 3PH MOTOR EM4314T

Catalog Number: EM4314T
Description: 60HP,1780RPM,364T,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 912 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • 2 3/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 136/68
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95
EFFICIENCY-2: 94.5
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: EM4314T
SPEC. NUMBER: P36G3425
AG-BLANK-LINE-1A: SUIT FOR 208V @ 149 AMPS
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
MAX. KVAR: 10.0
SPEED [rpm]: 1780
MOTOR-WEIGHT: --
OUTPUT [hp]: 60
PHASE: 3
POWER-FACTOR: 87
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
FRAME: 364T

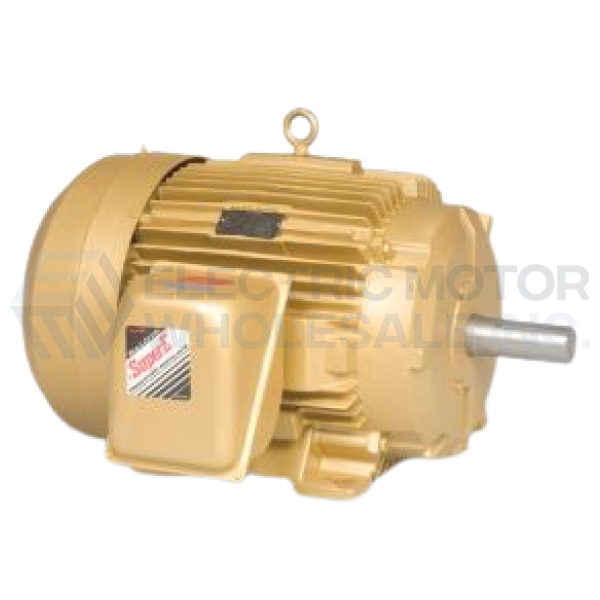

60HP BALDOR 1780RPM 364T TEFC 3PH MOTOR EM4314T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4314T
Stock # EM4314T
Price: $4,523.00
Compare At: $8,919.00
