75HP BALDOR 3550RPM 365TS TEFC 3PH MOTOR EM4313T

Catalog Number: EM4313T
Spec Number: P36G3406
Description: 75HP,3550RPM,365TS,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 980 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

FEATURES:

  • Ball bearings
  • 1-7/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 161/80.7
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95
EFFICIENCY-2: 94.5
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: EM4313T
SPEC. NUMBER: P36G3406
AG-BLANK-LINE-1A: --
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: F
MAX. KVAR: 05.0
SPEED [rpm]: 3555
MOTOR-WEIGHT: --
OUTPUT [hp]: 75
PHASE: 3
POWER-FACTOR: 92
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
FRAME: 365TS

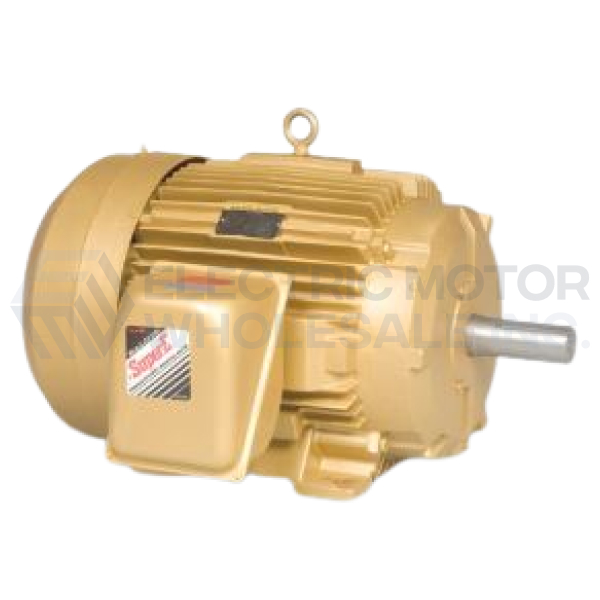

75HP BALDOR 3550RPM 365TS TEFC 3PH MOTOR EM4313T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4313T
Stock # EM4313T
Price: $5,679.00
Compare At: $10,507.00
