40HP BALDOR 1185RPM 364T TEFC 3PH MOTOR EM4308T

Catalog Number: EM4308T
Description: 40HP,1185RPM,364T,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 908 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • 2 3/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 98.8/49.4
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 94.1
EFFICIENCY-2: 93.6
EFFICIENCY-3: --
ENCLOSURE: TEFC
CATALOG NUMBER: EM4308T
SPEC. NUMBER: P36G3400
AG-BLANK-LINE-1A: --
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
MAX. KVAR: 12.0
SPEED [rpm]: 1190
MOTOR-WEIGHT: --
OUTPUT [hp]: 40
PHASE: 3
POWER-FACTOR: 80
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460
FRAME: 364T

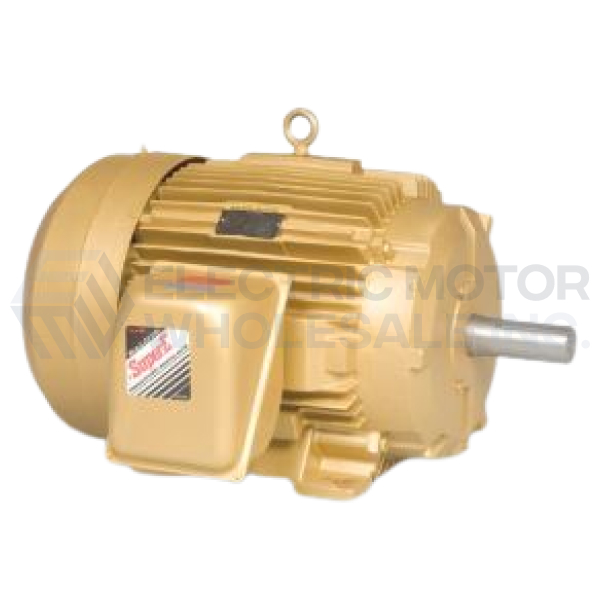

40HP BALDOR 1185RPM 364T TEFC 3PH MOTOR EM4308T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4308T
Stock # EM4308T
Price: $4,798.00
Compare At: $8,414.00
