40HP BALDOR 1190RPM 364T TEFC 3PH MOTOR EM4308T-G

Catalog Number: EM4308T-G
Description: 40HP,1190RPM,364T,TEFC,3PH,60HZ,HVAC,SUPER-E,AEGIS
Ship Weight: 883 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS: Heating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive.

FEATURES:

  • Class H insulated with AEGIS shaft grounding ring installed internally
  • Regreasable ball bearings
  • Dynamically balanced rotors for reduced vibration and quiet operation
  • Suitable for mounting in any position
  • Meet or exceed NEMA Premium efficiencies
  • Inverter Ready
  • 3 year warranty
208V AMPS: N/A
BEARING-DRIVE-END: 65BC03J30X
BEARING-OPP-DRIVE-END: 65BC03J30X
CUSTOMER-PART-NUMBER: --
DESIGN CODE: B
DOE-CODE: 010A
FL EFFICIENCY: 94.1
ENCLOSURE: TEFC
FRAME: 364T
GREASE: POLYREX EM
HERTZ: 60
CATALOG NUMBER: EM4308T-G
SPEC. NUMBER: A36-1285-1185
INSULATION-CLASS: H
KVA-CODE: G
MAX. SPACE HEATER TEMP.: --
SPEED [rpm]: 1190
OUTPUT [hp]: 40
PHASE: 3
POWER-FACTOR: 80
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPACE-HEATER-AMPS: --
SPACE-HEATER-VOLTS: --
VOLTAGE: 230/460
FL AMPS: 98.8/49.4

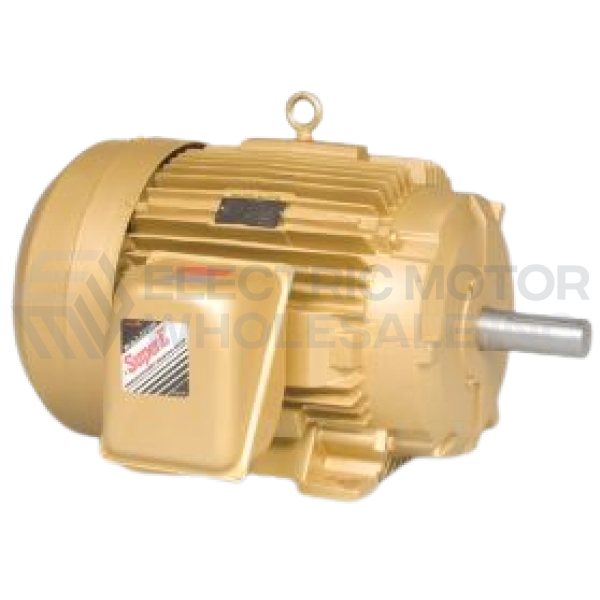

40HP BALDOR 1190RPM 364T TEFC 3PH MOTOR EM4308T-G
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4308T-G
Stock # EM4308T-G
Price: $5,377.00
Compare At: $9,257.00
