40HP BALDOR 1770RPM 324T TEFC 3PH MOTOR EM4110T-12

Catalog Number: EM4110T-12
Description: 40HP,1770RPM,324T,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 601 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • 2 1/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty
208V AMPS: --
BEARING-DRIVE-END: 6312
BEARING-OPP-DRIVE-END: 6311
CUSTOMER-PART-NUMBER: --
DESIGN CODE: A
DOE-CODE: 010A
FL EFFICIENCY: 94.1
ENCLOSURE: TEFC
FRAME: 324T
GREASE: POLYREX EM
HERTZ: 60
CATALOG NUMBER: EM4110T-12
SPEC. NUMBER: 12C051Y339G1
INSULATION-CLASS: F
KVA-CODE: H
MAX. SPACE HEATER TEMP.: --
SPEED [rpm]: 1770
OUTPUT [hp]: 40
PHASE: 3
POWER-FACTOR: 83
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPACE-HEATER-AMPS: --
SPACE-HEATER-VOLTS: --
VOLTAGE: 230/460
FL AMPS: 96/48

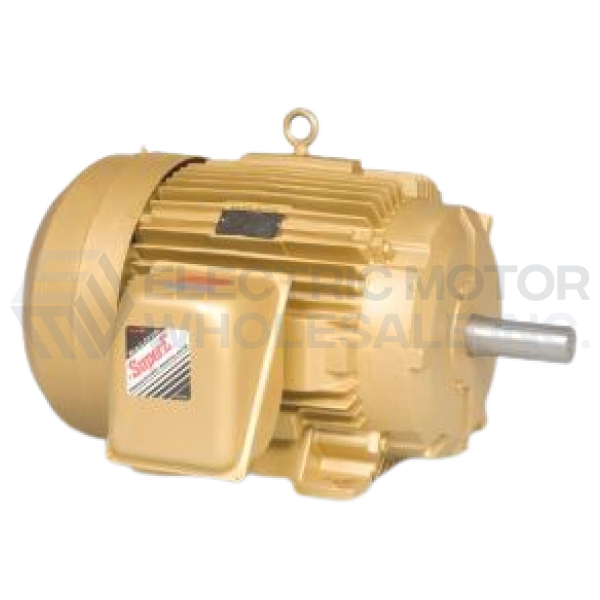

40HP BALDOR 1770RPM 324T TEFC 3PH MOTOR EM4110T-12
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM4110T-12
Stock # EM4110T-12
Price: $4,592.90
Compare At: $6,524.00
