5HP BALDOR 1160RPM 215T TEFC 3PH MOTOR EM3708T

Catalog Number: EM3708T
Spec Number: 37H244S838G1
Description: 5HP,1160RPM,215T,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 154 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

FEATURES:

  • Ball bearings
  • 1 3/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel frame
  • 3 year warranty

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

SPEC. NUMBER: 37H244Q067G1
CATALOG NUMBER: EM3708T
FL AMPS: 14.4/7.2
208V AMPS: 15.6
BEARING-DRIVE-END: 6307
BEARING-OPP-DRIVE-END: 6206
DESIGN CODE: A
DOE-CODE: 010A
FL EFFICIENCY: 89.5
ENCLOSURE: TEFC
FRAME: 215T
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 1160
OUTPUT [hp]: 5
PHASE: 3
POWER-FACTOR: 71
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 230/460

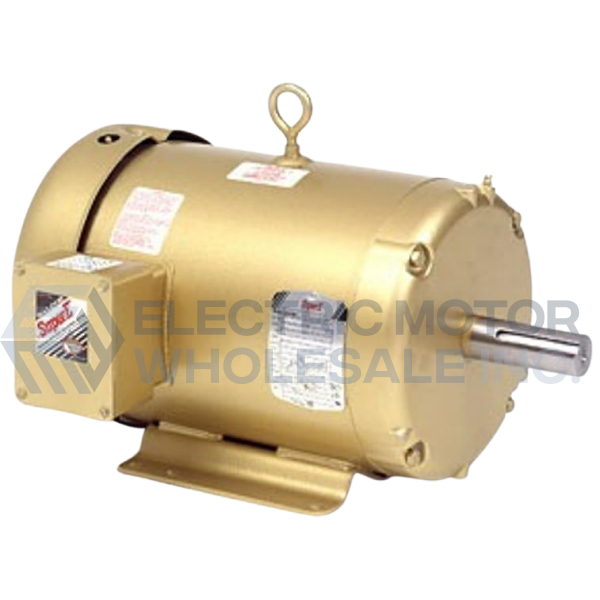

5HP BALDOR 1160RPM 215T TEFC 3PH MOTOR EM3708T
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM3708T
Stock # EM3708T
Price: $824.00
Compare At: $1,524.00
