2HP BALDOR 1755RPM 56 TEFC 3PH MOTOR EM3558

Catalog Number: EM3558
Description: 2HP,1755RPM,56,TEFC,3PH,60HZ,SUPER-E
Ship Weight: 46 lbs.

BALDOR Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts.

APPLICATIONS: Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

FEATURES:

  • Ball bearings
  • 5/8" keyed output shaft
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
  • 3 year warranty
SPEC. NUMBER: 35A011M494G1
CATALOG NUMBER: EM3558
FL AMPS: 6-5.8/2.9
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 86.5
ENCLOSURE: TEFC
FRAME: 56
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: L
SPEED [rpm]: 1755
OUTPUT [hp]: 2
PHASE: 3
POWER-FACTOR: 73
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
VOLTAGE: 208-230/460

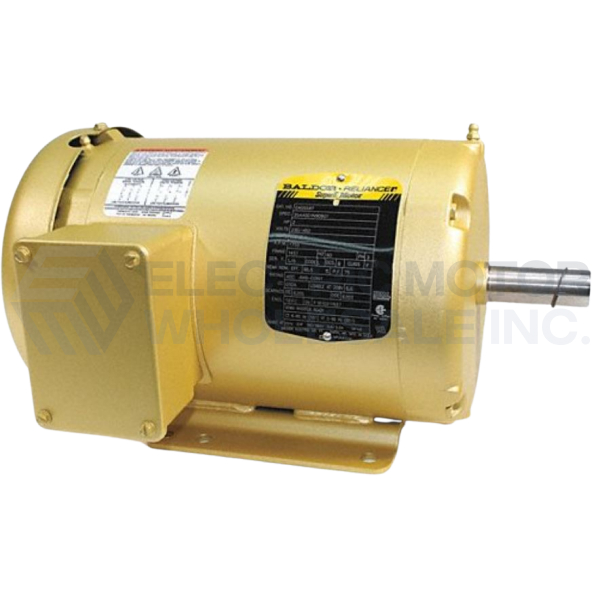

2HP BALDOR 1755RPM 56 TEFC 3PH MOTOR EM3558
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM3558
Stock # EM3558
Price: $450.00
Compare At: $867.00
