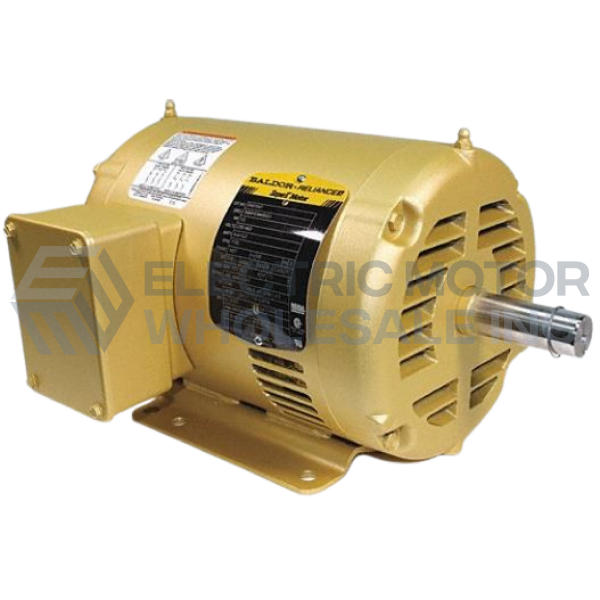

3HP BALDOR 1765RPM 182T OPSB 200V 3PH SUPER-E MOTOR EM3211T-8

3HP BALDOR 1765RPM 182T OPSB 200V 3PH SUPER-E MOTOR EM3211T-8

Picture is for reference only.

Part Number:

EM3211T-8

Model/Spec Number:

36H945S760G1

Manufacturer:

ABB/Baldor
EM3211T-8 BALDOR 3HP Three Phase Electric Motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power. Super-E Motors are designed to conserve energy over extended time periods.
MSRP: $1,413.00

Regular Price

USD

$

1,015

48

QTY
Login to View Discounts

Free No Rush Shipping

Weight:

71 lbs

Dimensions:

20 x 23 x 16 inches

HS Code:

8501.52.4000

UPC:

781568118924

Technical Details

Brand:

Baldor

Application:

General Purpose

Output HP:

3

Output KW:

2.2

Output RPM:

1765

Frame Size NEMA:

182T

Mount NEMA:

With Base

Enclosure NEMA:

OPSB

Enclosure IEC:

IP22

Voltage:

200

EM3211T-8-InfoPacket

APPLICATIONS: Typical applications include Pumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 2:1 constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • 36 Month warranty
  • 1-1/8" Keyed output shaft
  • Heavy duty frame
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
