1HP BALDOR 3450RPM 56 OPSB 3PH MOTOR EM3115

Catalog Number:  EM3115
Description:  1HP,3450RPM,56,OPSB,3PH,60HZ,SUPER-E
Ship Weight:  28 lbs.

APPLICATIONS: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • 36 Month warranty
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
SPEC. NUMBER: 35T983P987G1
CATALOG NUMBER: EM3115
FL AMPS: 3-2.9/1.45
208V AMPS: --
BEARING-DRIVE-END: 6205
BEARING-OPP-DRIVE-END: 6203
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 80
ENCLOSURE: OPSB
FRAME: 56
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: K
SPEED [rpm]: 3500
OUTPUT [hp]: 1
PHASE: 3
POWER-FACTOR: 80
RATING: 40C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.25
VOLTAGE: 208-230/460

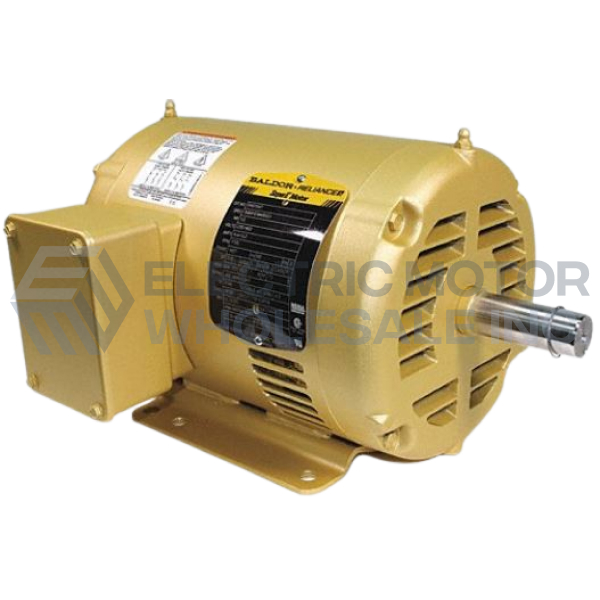

1HP BALDOR 3450RPM 56 OPSB 3PH MOTOR EM3115
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM3115
Stock # EM3115
