100HP BALDOR 1190RPM 444T OPEN 3PH MOTOR EM2583T-4

Catalog Number:  EM2583T-4
Description: 100HP,1190RPM,444T,OPSB,3PH,SUPER-E
Ship Weight:  1500 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS:

Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-2B: --
AG-BLANK-LINE-3A: --
AG-BLANK-LINE-3B: --
AG-BLANK-LINE-4A: --
AG-BLANK-LINE-4B: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 116
BRG-DE-AFBMA: 90BC03J30X
BRG-ODE-AFBMA: 90BC03J30X
DESIGN CODE: B
DUTY: CONT
CATALOG NUMBER: EM2583T-4
SPEC. NUMBER: P44G1771
ENCLOSURE: DP
FRAME: 444T
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: F
SPEED [rpm]: 1185
MOTOR-WEIGHT: --
OUTPUT [hp]: 100
PHASE: 3
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 460
AG-BLANK-LINE-1A: --

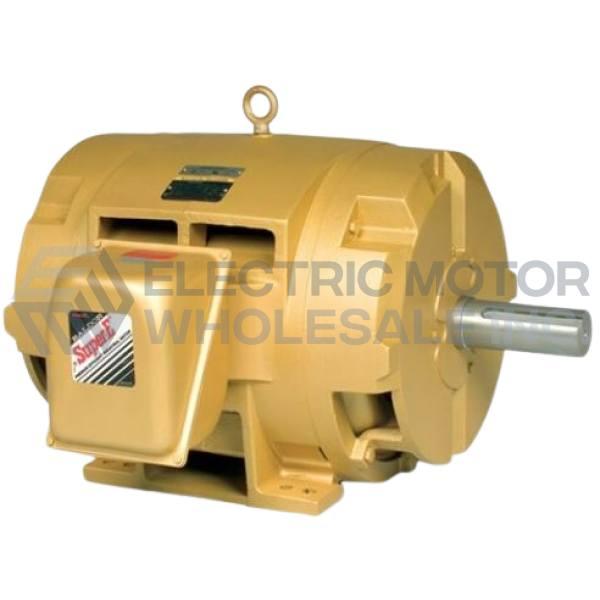

100HP BALDOR 1190RPM 444T OPEN 3PH MOTOR EM2583T-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM2583T-4
Stock # EM2583T-4
Price: $6,784.00
Compare At: $12,551.00
