200HP BALDOR 1190RPM 447T OPEN 3PH MOTOR EM2564T-4

Catalog Number:  EM2564T-4
Description: 200HP,1190RPM,447T,OPEN,3PH,SUPER-E
Ship Weight:  1827 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS:

Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 232
BRG-DE-AFBMA: 90BC03J30X
BRG-ODE-AFBMA: 90BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 95.4
EFFICIENCY-2: 95.0
EFFICIENCY-3: --
ENCLOSURE: DP
CATALOG NUMBER: EM2564T-4
SPEC. NUMBER: P44G4512
AG-BLANK-LINE-1A: --
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: F
MAX. KVAR: 40.0
SPEED [rpm]: 1190
MOTOR-WEIGHT: --
OUTPUT [hp]: 200
PHASE: 3
POWER-FACTOR: 84
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 460
FRAME: 447T
200HP BALDOR 1190RPM 447T OPEN 3PH MOTOR EM2564T-4

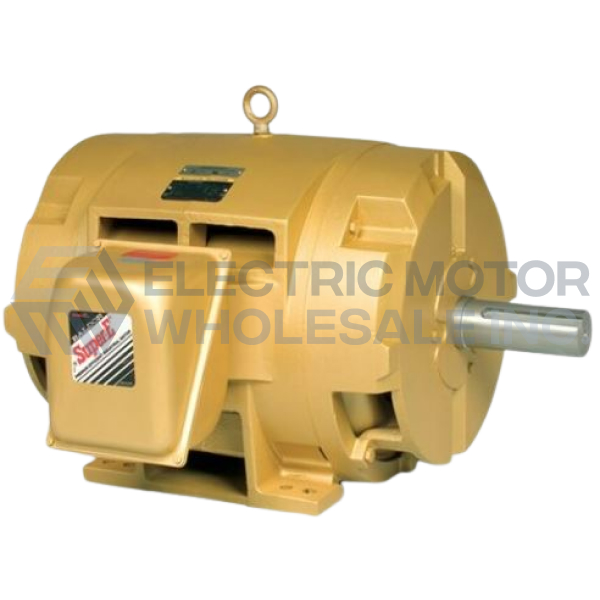

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM2564T-4
Stock # EM2564T-4
Price: $11,249.00
Compare At: $20,984.00
