150HP BALDOR 1785RPM 444TS ODP 3PH MOTOR EM2558TS-4

Catalog Number:  EM2558TS-4
Description: 150HP,1785RPM,444TS,ODP,3PH,PREMIUM
Ship Weight:  1519 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS:

Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
AG-BLANK-LINE-1A: --
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 170
BRG-DE-AFBMA: 90BC03J30X
BRG-ODE-AFBMA: 90BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 96.2
EFFICIENCY-2: 95.8
EFFICIENCY-3: --
ENCLOSURE: DP
CATALOG NUMBER: EM2558TS-4
FRAME: 444TS
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
MAX. KVAR: 30.0
SPEED [rpm]: 1785
MOTOR-WEIGHT: --
OUTPUT [hp]: 150
PHASE: 3
POWER-FACTOR: 86
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
SPEC. NUMBER: P44G1799
TYPE: P
VOLTAGE: 460

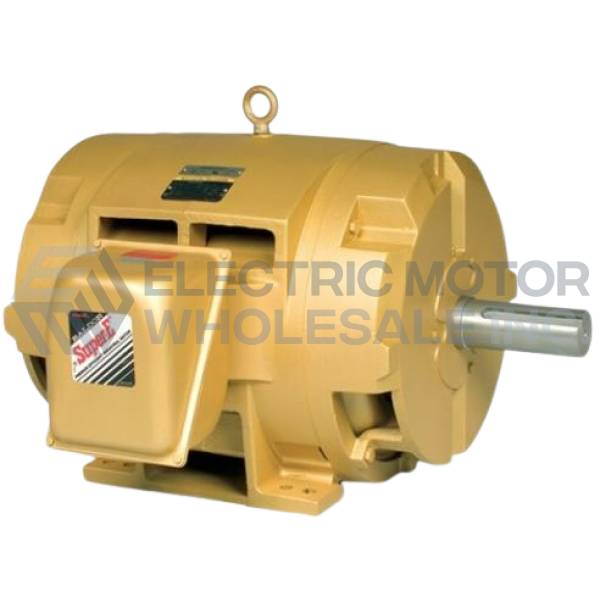

150HP BALDOR 1785RPM 444TS ODP 3PH MOTOR EM2558TS-4
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM2558TS-4
Stock # EM2558TS-4
Price: $6,544.00
Compare At: $12,208.00
