40HP BALDOR 1185RPM 364T OPEN 3PH MOTOR EM2540T-CI

Catalog Number:  EM2540T-CI
Description: 40HP,1185RPM,364T,OPEN,3PH,SUPER-E
Ship Weight:  801 lbs.

This Baldor Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

APPLICATIONS:

Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

FEATURES:

  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
SPEC. NUMBER: P36G3402
CATALOG NUMBER: EM2540T-CI
AG-BLANK-LINE-1A: --
AG-BLANK-LINE-2A: --
AG-BLANK-LINE-3A: --
AMBIENT-TEMPERATURE: 40
FL AMPS: 98.8/49.4
BRG-DE-AFBMA: 65BC03J30X
BRG-ODE-AFBMA: 65BC03J30X
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 94.1
EFFICIENCY-2: 93.6
EFFICIENCY-3: --
ENCLOSURE: DP
FRAME: 364T
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
MAX. KVAR: 12.0
SPEED [rpm]: 1190
MOTOR-WEIGHT: --
OUTPUT [hp]: 40
PHASE: 3
POWER-FACTOR: 80.5
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 230/460

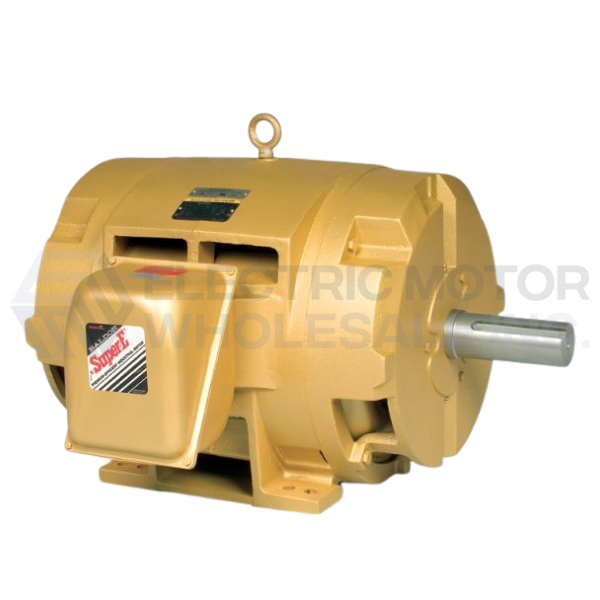

40HP BALDOR 1185RPM 364T OPEN 3PH MOTOR EM2540T-CI
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: EM2540T-CI
Stock # EM2540T-CI
Price: $3,602.00
Compare At: $6,664.00
